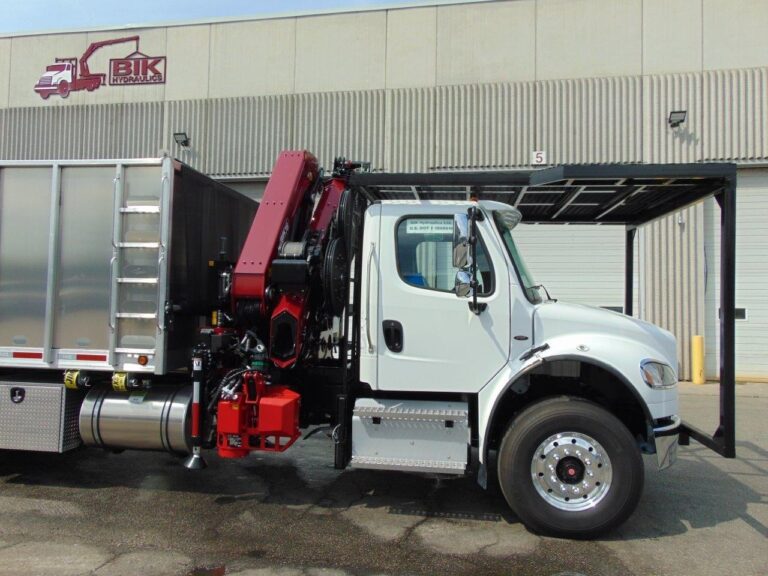

BOOM DETAILS
New – BIK Tree-Care Series TC-78   (23.5 ton/m)

7-hydraulic extensions to  78’ vertical) w/extra grapple extn
Vertical Capacity: 2,900 lb at 78’ vertical reach
HORIZONTAL Capacities:8,500 lb @ 14’
5,600 lb @ 20’
4,020 lb @ 26’
2,230 lb @ 40’
1,500 lb @ 55’
1,250 lb @ 66’
408 Degrees Rotation on Main Hydraulic Slewing
Double pilot operated on slewing and pilot operated check valves on all cylinders
Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
DANFOSS Proportional Valve Controls – single sided operator control station,  Load Holding Valves on all cylinders
PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
SCANRECO Radio Remote Control
Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder
15 degree negative angle on folding arm  –  Hydraulic Overload Protection – simplified system that prevents boom from overload
Two functions plumbed  to end of 6th extn,
Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
Load Tested & Installed behind cab, with integral sub-frame to meet or exceed all CMVSS Standards
Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components

DECK DETAILS

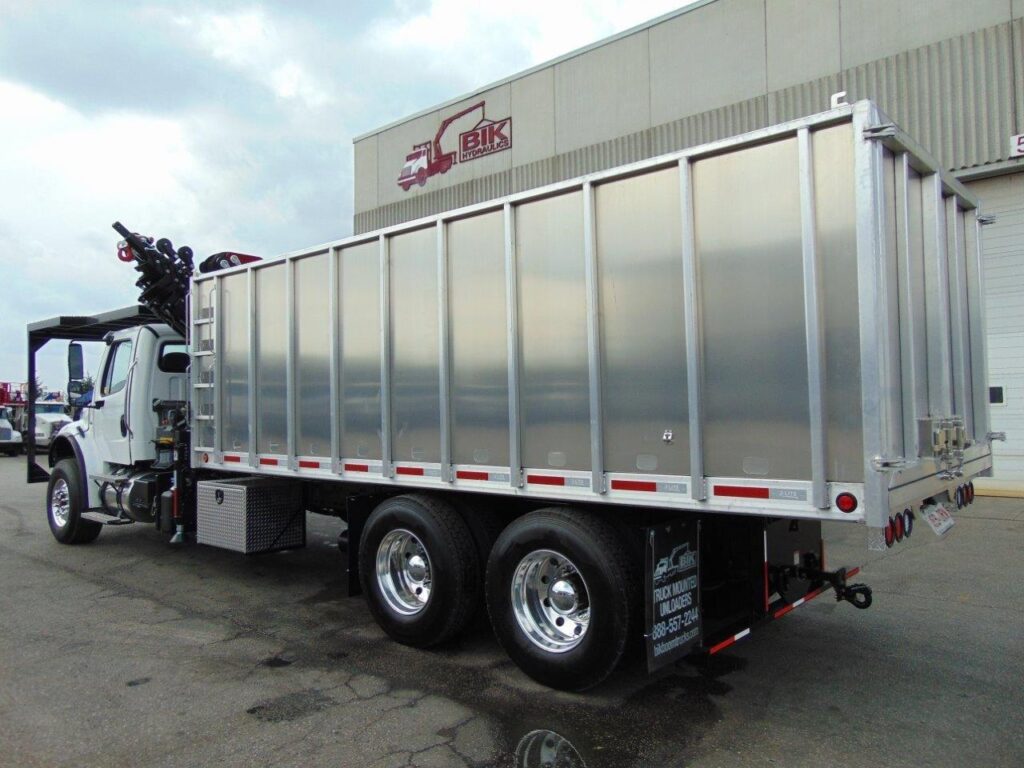

New  – 20’ long  x 96” Aluminum Dump Body:

6’ sides , solid sides
Smooth  floor
Rear barn doors (removable)
Nordic Scissor
Attached ladder on both sides
Cylinder hydraulic dump system under body
Manual roll tarp at front.

TRUCK DETAILS

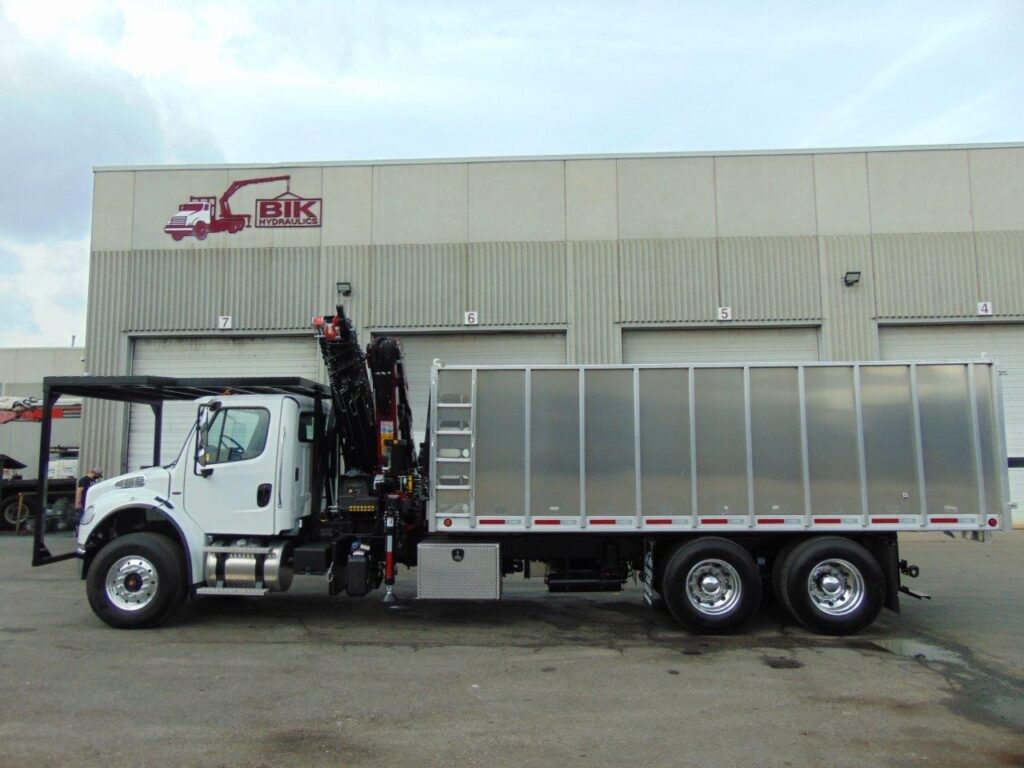

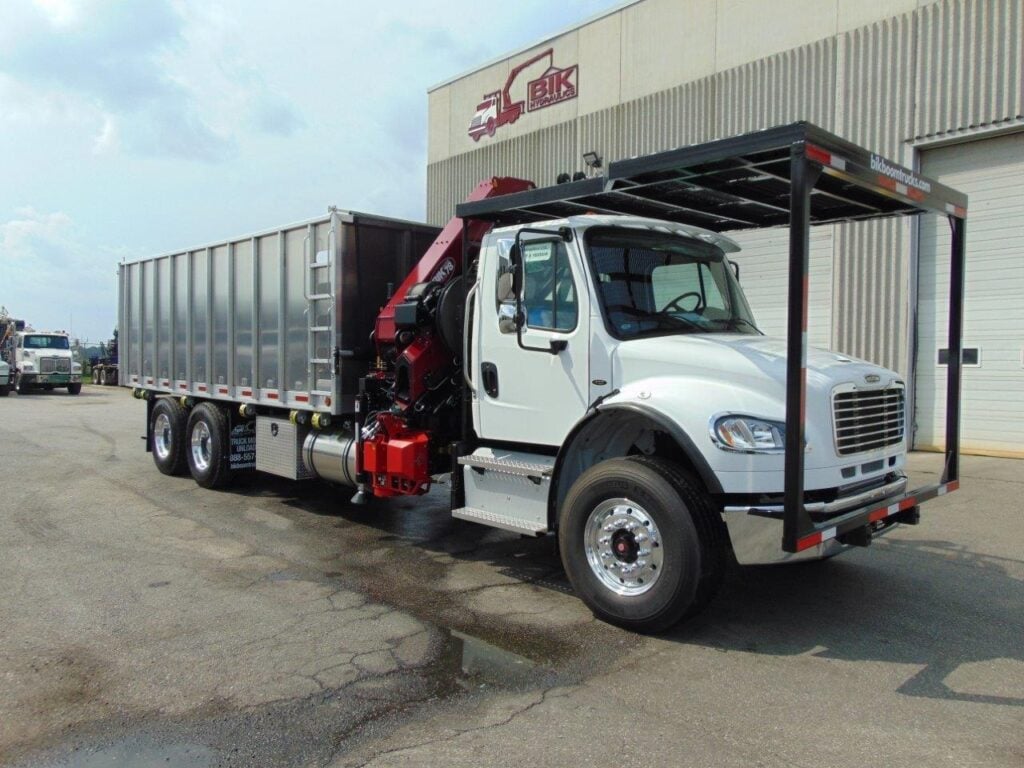

New – Freightliner M2-106  Tandem Diesel  Truck: 60,000 lb GVWR

Truck Cab White
CUMMINS  350 hp
Allison auto trans.
20,000 lb 385/65R22.5 Front tires on Aluminum rims
40,000 LB Rears on air ride Suspension with 11R22.5 tires on steel white rims – steel inner
Full double frame chassis, 54” spread at ta

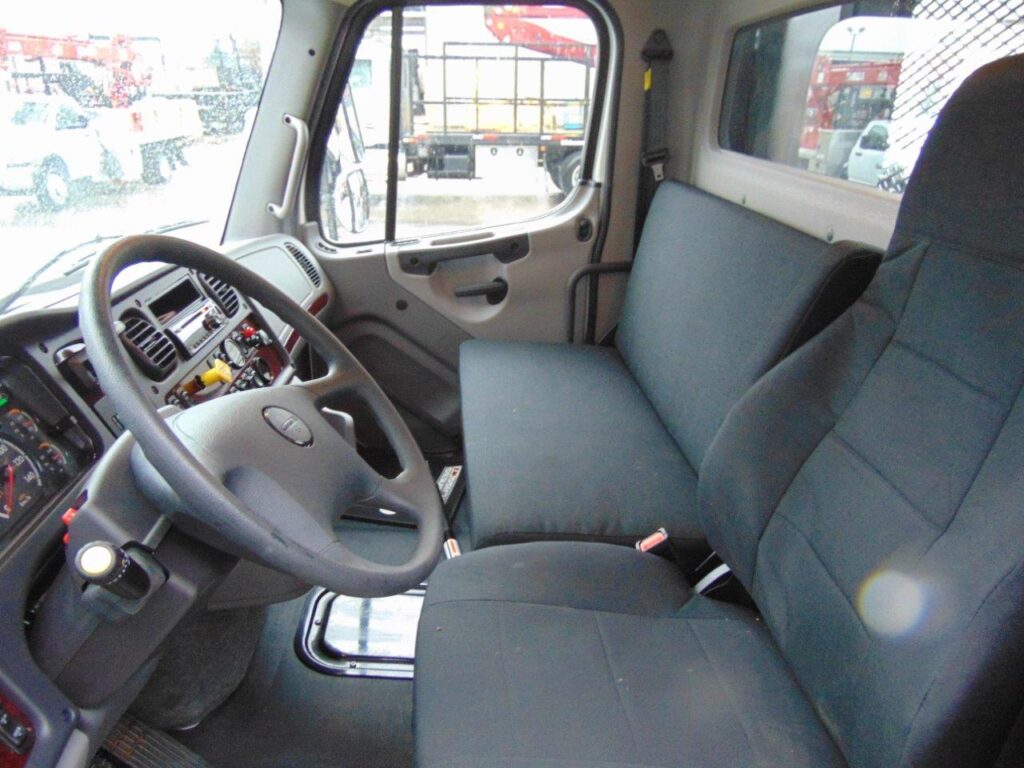

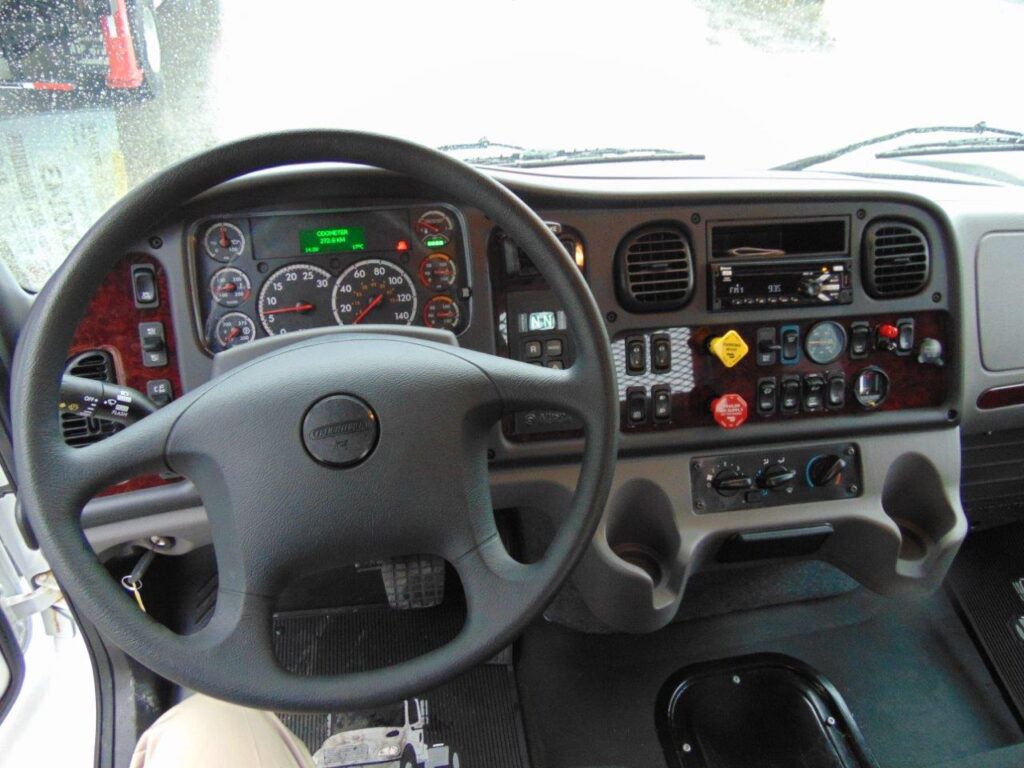

Truck  Features Include: Air cond., AM/FM  stereo, power windows/locks, tilt steering, cruise control, air ride cab, 2-man pass seat, painted bumper, heated mirrors,  engine block heater, inter axle lock ups, single 70 gal  aluminum fuel tank, etc.

Also Included:

(2) pcs – 2” PVC stabilizer pads – with holders
36” Alum storage boxes installed
Mecanil SG160 Grapple saw with spare parts kit Grapple saw holder/stowe bracket on side of frame near boom
BIK tech to familiarize boom operation at your facility

78′ VERTICAL REACH WITH 2,900LBS CAPACITY
CUSTOM MADE DUMP BODIES TO YOUR SPECIFICATIONS
