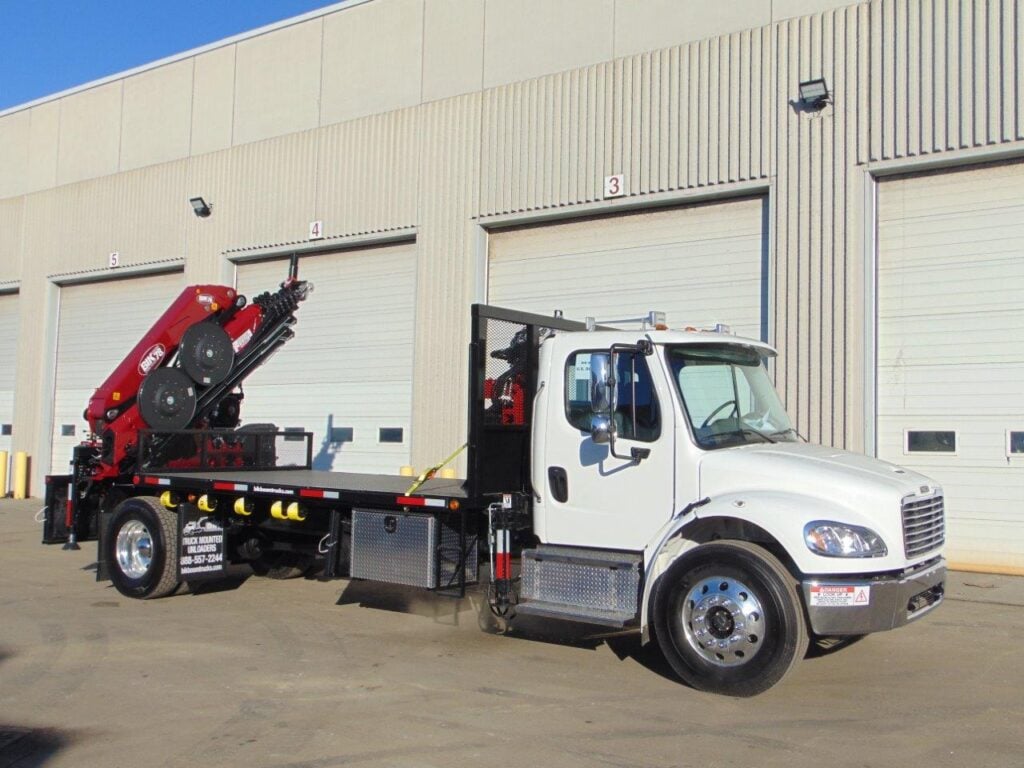

BIK TC - 70/78

Rated for 3,800 lbs @ 70 ft. vertical

Description

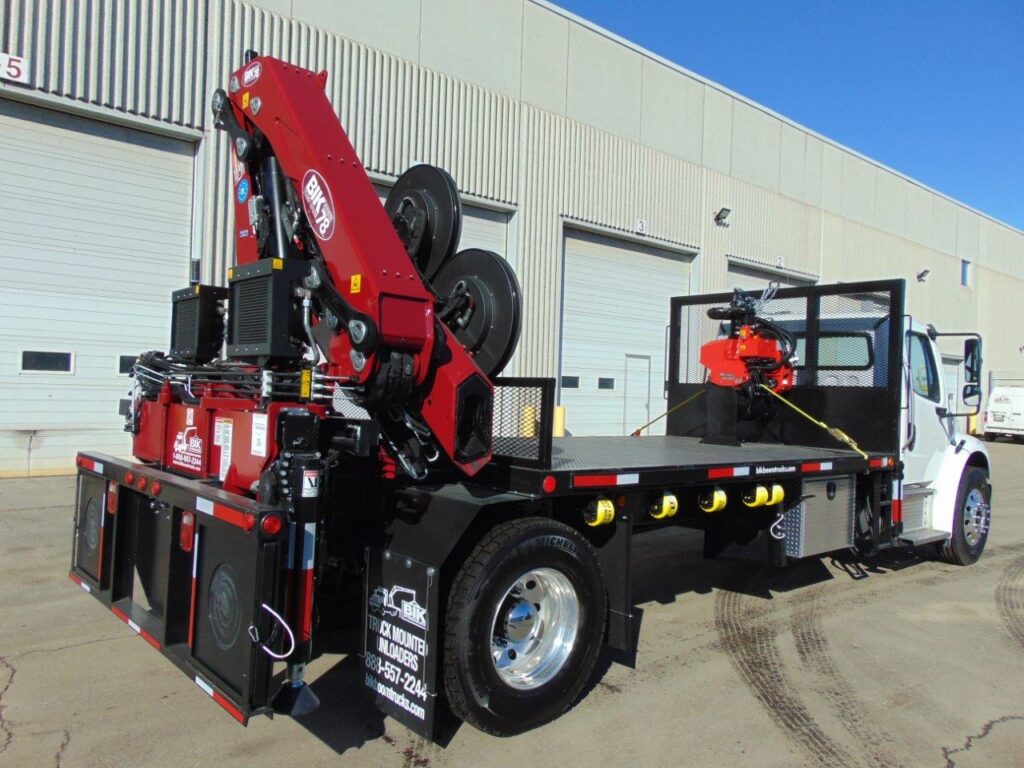

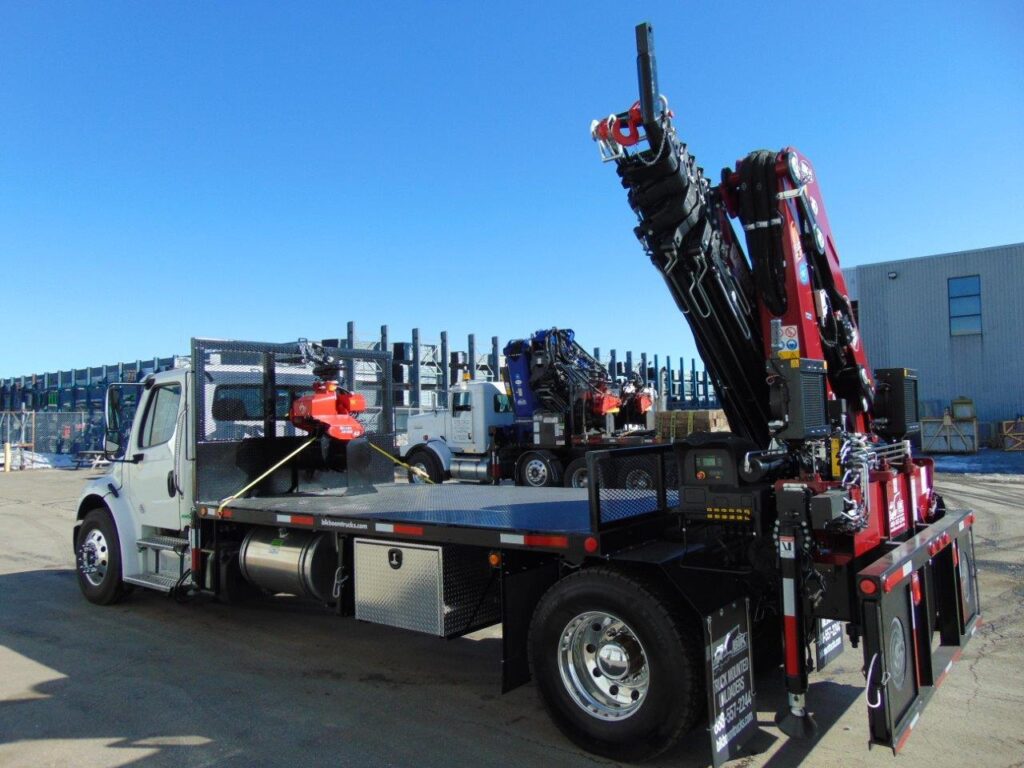

BOOM DETAILS

New – BIK Tree-Care Series TC-70  (PM 23.5 ton/m):

6-hydraulic extensions & one manual grapple extension
Vertical Reach of 70’Handles 3,800 lbs @ 70’ Vertical
HORIZONTAL Capacities:9,800 lb @ 14’
5,900 lb @ 20’
4,330 lb @ 26’
2,560 lb @ 40’
1,750 lb @ 55’
408 Degrees Rotation on Main Hydraulic Slewing
Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
DANFOSS Proportional Valve Controls – single sided operator control station,  Load Holding Valves on all cylinders
PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
SCANRECO Radio Remote Control
Hydraulic OUT and Hydraulic DOWN Extra Wide  – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
15 degree negative angle on folding arm   –  Hydraulic Overload Protection – simplified sysTem that prevents boom from overload
Two functions plumbed  to end of 6th extn,  – Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
Installed at rear on  integral sub base / torque box, Engineer certified stability inspection & certificate,
Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components

DECK DETAILS
New  – 14’ long  Steel Flat Deck

4’ head board
8’ wide usable deck + stake pockets with rub rail
Steel checker plate Deck surface
5-sliding tie down winch straps on pass side
Dual access ladders at front & winch bar with holder
Integral sub-base / torque box To maximize torsion strength
DOT stickers and clearance lights as required.

TRUCK DETAILS

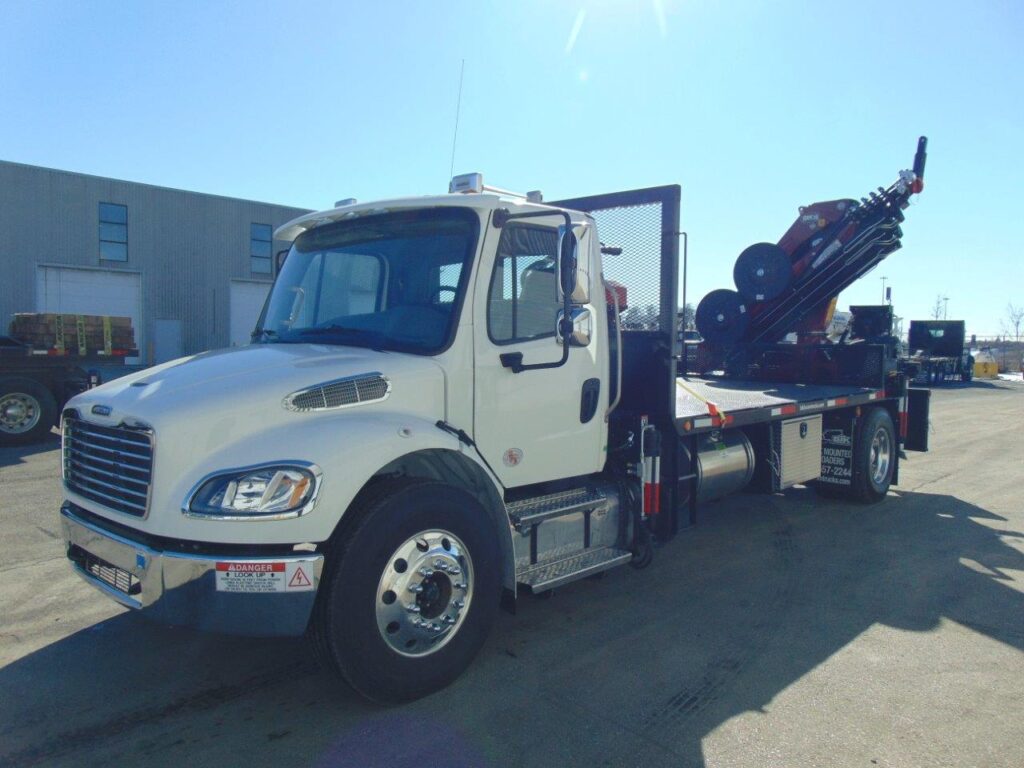

New – Freightliner M2-106  2- axle Truck – NON-CDL with 33,000 max GVWR

300 hp Cummins Diesel
Allison Auto Trans, 12,000 lb fronts w/315 type 22.5 tires
21,000 lb rears
Polished aluminum rims

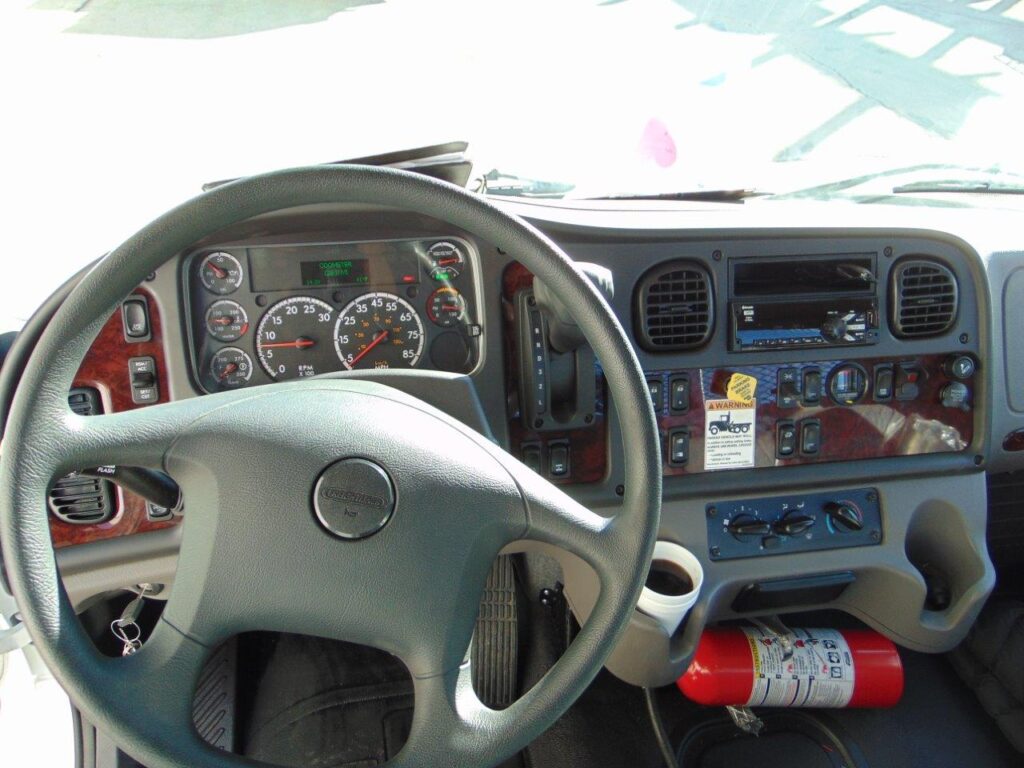

Air Cond, 2-man pass seat, cruise, power windows/locks, tilt/tele steering,  stereo, chrome bumper/grille, white color cab, etc.

Also Included:

(2) pcs – 2” PVC stabilizer pads with holders
36” Alum storage boxes installed
Mecanil SG-220 Grapple saw with spare parts kit
Grapple saw holder/stowe bracket on side of frame near boom, – BIK tech to familiarize boom operation at your facility for 2-3 days,

Other Options at Extra Cost:

(1) Aluminum self evelling man basket
Drawplate with reese type pintle hook receiver with electric trailer brake actuator installed
(6) pcs removable log bunks to fit deck pockets
TC-78 version – with 8’ extra reach and comes with SG-160 Grapple saw, Handling 2,800 lbs @ 78’ Vertical Reach

Price on Request

Location

Toronto, ON, Canada

Truck Details

Condition

New

Chassis Make / Model

Freightliner M2-106

Engine Make / Model

Cummins

Horsepower

300 HP

Transmission

Automatic

Deck Length

14 ft.

Crane Details

Condition

New

Crane Make / Model

BIK TC-70 TC-78

Hydraulic Extensions

6

Manual Extensions

1

Fly-Jib

No

Crane Capacities

Max Lift Capacity

9,800 lbs

Max Vertical Reach

70 ft

Capacity at Max Vertical Reach

3800 lbs

Max Horizontal Reach

14 ft

Capacity at Max Horizontal Reach

9800 lbs

Grapplesaw Details

Grapplesaw Make/Model

Mecanil SG220 RC

Cutting Bar Size

"
