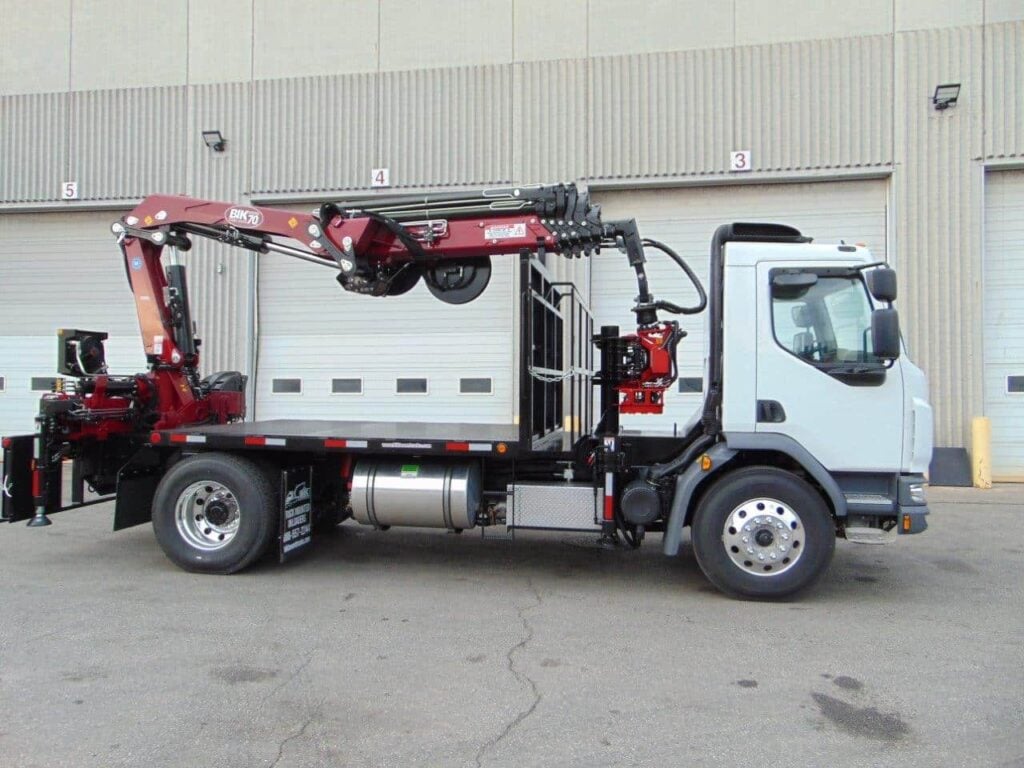

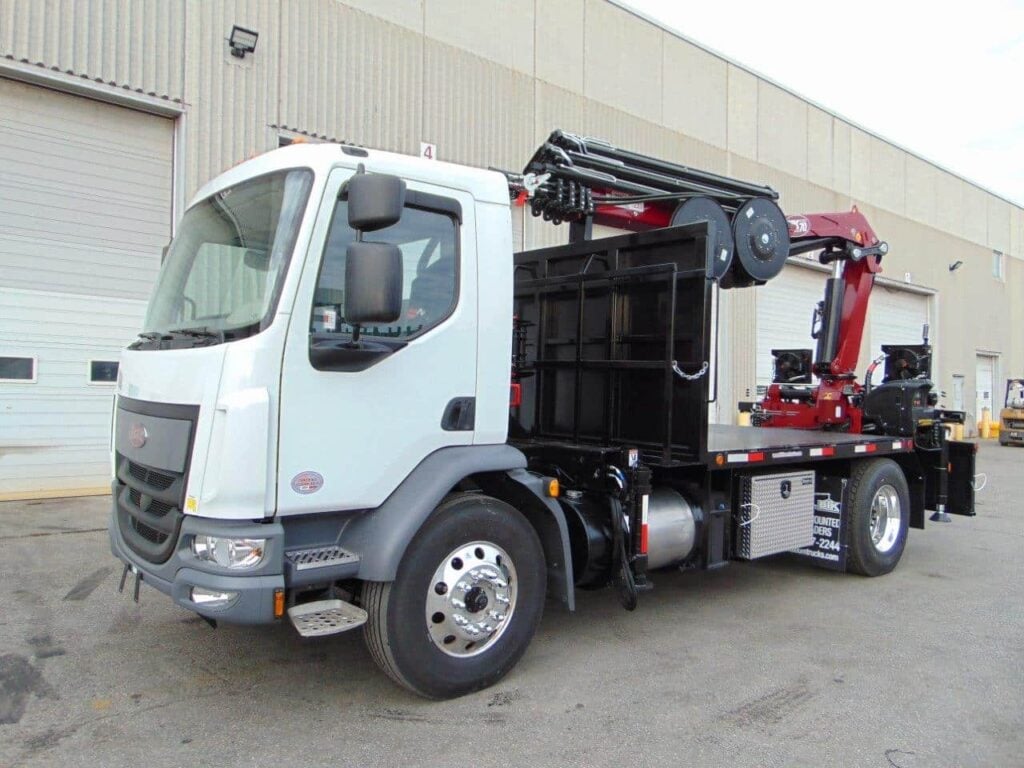

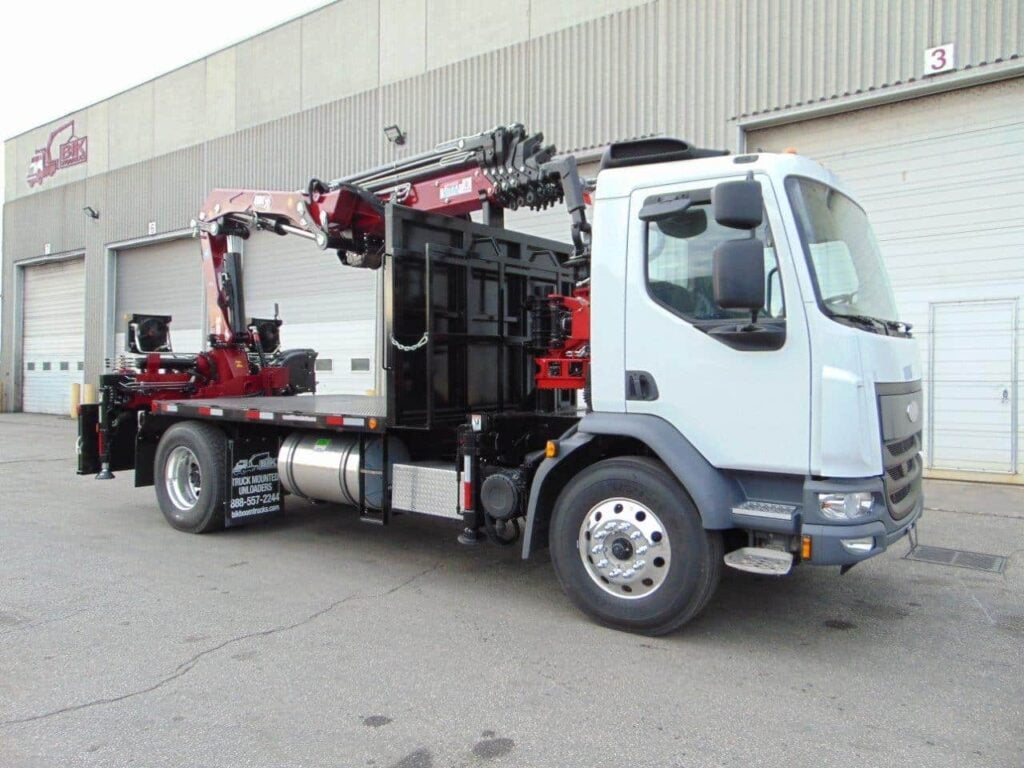

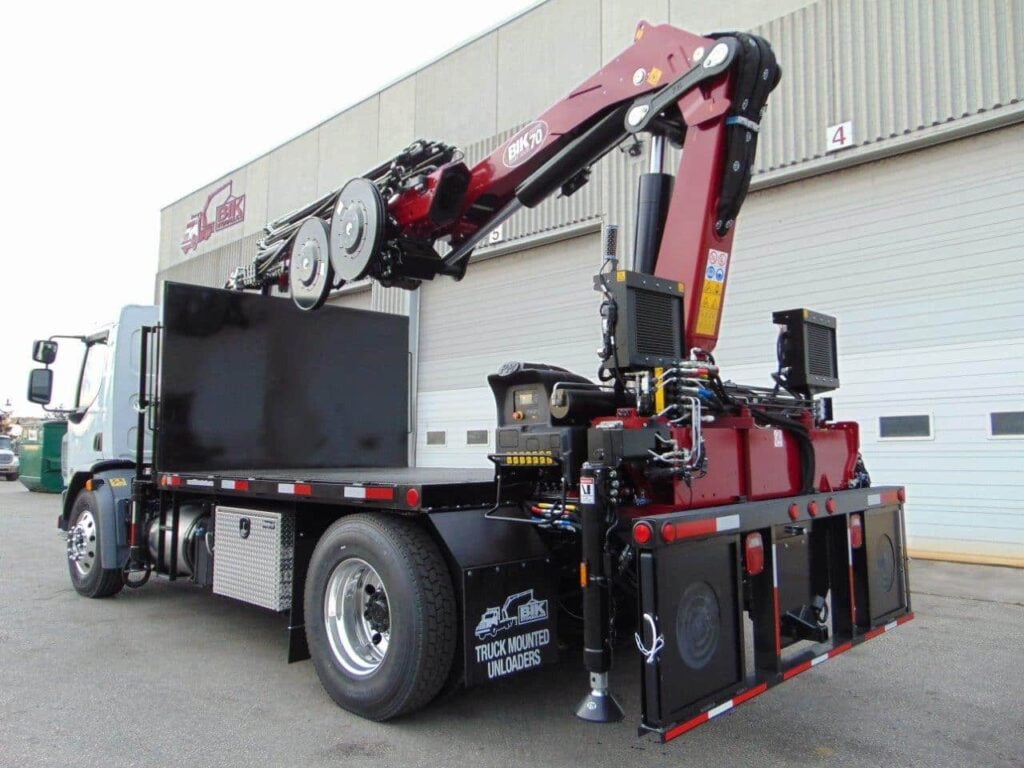

BIK TREE-CARE SERIES TC-70 ON NEW PETERBILT 220

Rated for 3,800 lbs @ 70 ft. vertical

Description

BOOM DETAILS

New – BIK Tree-Care Series TC-70  (PM 23.5 ton/m):

6-hydraulic extensions & one manual grapple extension
Vertical Reach of 70’Handles 3,800 lbs @ 70’ Vertical
HORIZONTAL Capacities:9,800 lb @ 14’
5,900 lb @ 20’
4,330 lb @ 26’
2,560 lb @ 40’
1,750 lb @ 55’
408 Degrees Rotation on Main Hydraulic Slewing
Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
DANFOSS Proportional Valve Controls – single sided operator control station,  Load Holding Valves on all cylinders
PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
SCANRECO Radio Remote Control
Hydraulic OUT and Hydraulic DOWN Extra Wide  – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
15 degree negative angle on folding arm   –  Hydraulic Overload Protection – simplified sysTem that prevents boom from overload
Two functions plumbed  to end of 6th extn,  – Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
Installed at rear on  integral sub base / torque box, Engineer certified stability inspection & certificate,
Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components

DECK DETAILS
New  – 10’ x 102” Steel Deck  Body

60” steel head board
Steel checker plate deck surface
Main sil X-braces & support
2-Deck access Ladders at Headboard
2-Ladders at rear
Reflectors and Mud-flaps
6 – Sliding Winches and track under deck
Painted black.

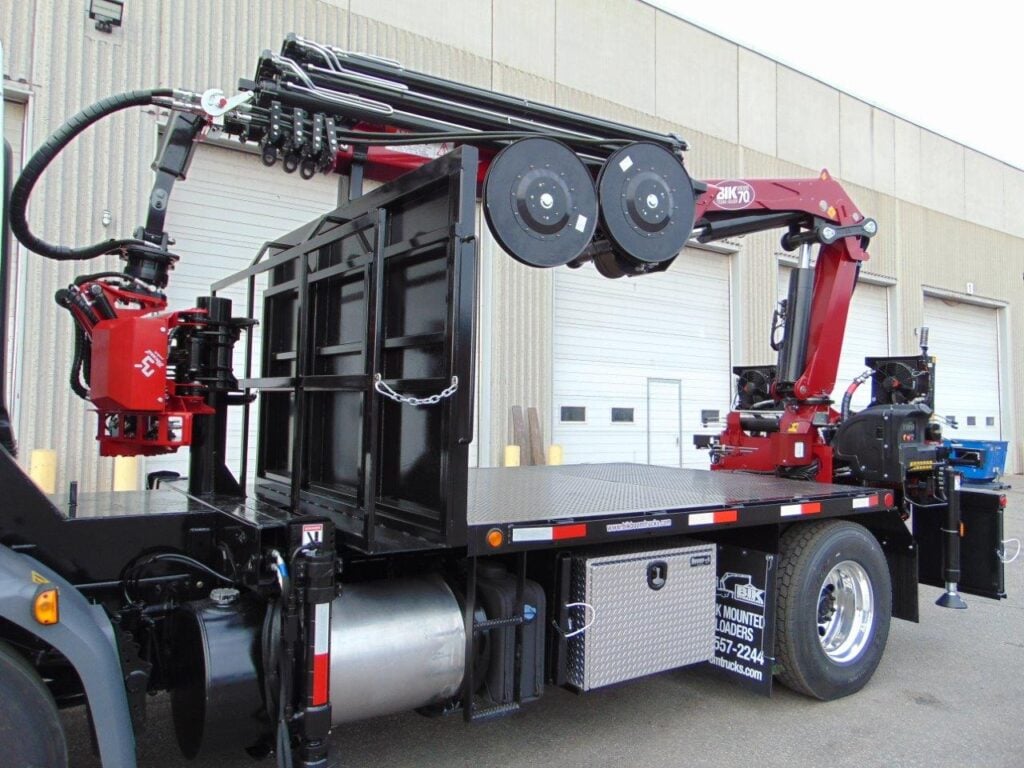

Mat Rack and Grapple Saw Rest

Integrated back of cab (ahead of head board) – To carry boom stowed over deck on Head Board with Grapple Attached.

TRUCK DETAILS
New – 2023 Peterbilt 220 Cab-Over Single axle Diesel Truck:

Cummins 260 hp Diesel
Allison 6spd Automatic transmission.
12,000 lb rated front axle with 11R22.5 Front tires on polished Aluminum rims
21,000 LB rated Rears on Spring Suspension with 11R22.5 tires on Polished Aluminum outer rims – steel inner
Air brakes
180” Wheel Base
Truck Features Include: Air cond., AM/FM  stereo,  Bluetooth, USB port, power windows, tilt steering,  power & heated mirrors, cruise, painted bumper, fog lights, aluminum battery box cover, 75 gal Aluminum fuel tank, engine block heater, etc.

Also Included:

(2) pcs – 2” PVC stabilizer pads – with holders
36” Alum storage boxes installed
Mecanil SG-160 Grapple saw with spare parts kit
Grapple saw holder/stowe bracket on side of frame near boom
BIK tech to familiarize boom operation at your facility for 2-3 days,

Other Additional Available Options:

(1) Aluminum self evelling man basket
Drawplate with reese type pintle hook receiver with electric trailer brake actuator installed
Additional 3’ Aluminum storage box installed under deck
TC-78 version – with 8’ extra reach , Handling 2,800 lbs @ 78’ Vertical Reach
3 sets – removable log bunks installed on each side of platform

Price on Request

Location

Toronto, ON, Canada

Truck Details

Condition

New

Chassis Make / Model

Peterbilt 220

Engine Make / Model

Cummins

Transmission

Automatic

Deck Length

10 ft.

Crane Details

Condition

New

Crane Make / Model

BIK TC-70

Hydraulic Extensions

6

Manual Extensions

1

Fly-Jib

No

Crane Capacities

Max Lift Capacity

9,800 lbs

Max Vertical Reach

70 ft

Capacity at Max Vertical Reach

3800 lbs

Max Horizontal Reach

55 ft

Capacity at Max Horizontal Reach

9800 lbs

Grapplesaw Details

Grapplesaw Make/Model

Mecanil SG160 RC

Cutting Bar Size

"
