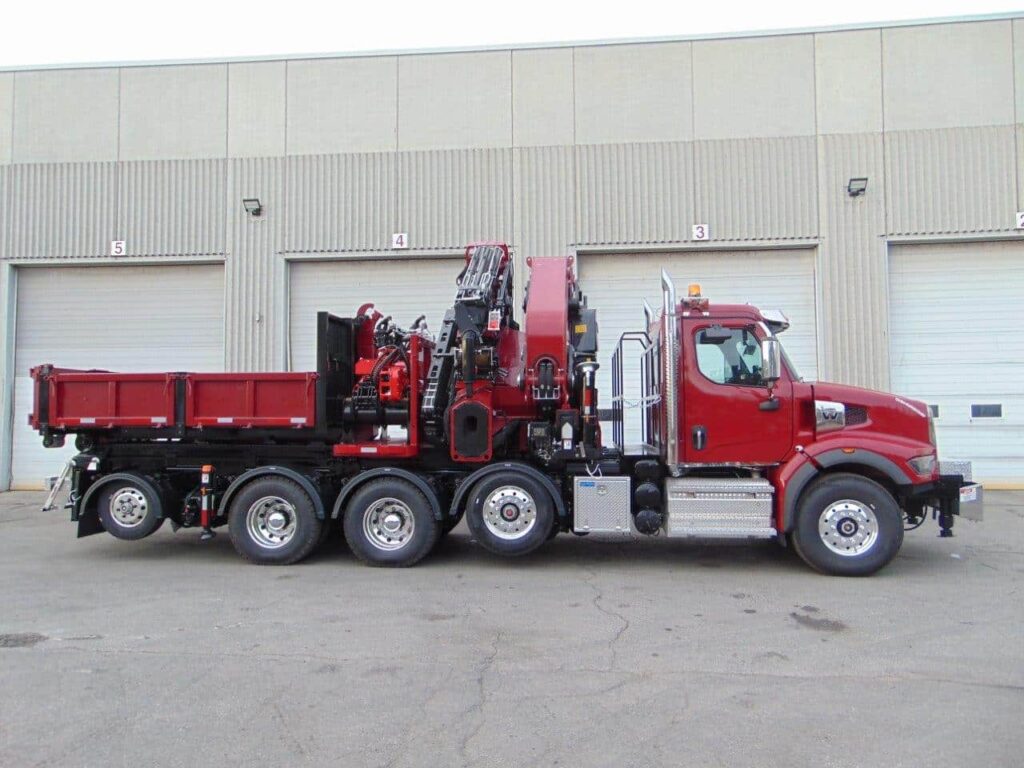

BIK TREE-CARE SERIES TC-126 ON NEW WESTERN STAR 49X WITH BIK SERIES HOOK LIFT

Rated for 2,050 lbs @ 126 ft. vertical

Description

BOOM DETAILS
New – BIK Tree-Care Series TC-126 –  100 ton/m  Knuckle Boom

8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
Including (1) Grapple extention in jib
Boom Capacity of  2,050 lbs @ 126’ Vertical Reach
Main Boom Horizontal Capacity:36,800 lb @  16’
20,000 lb @  23’
16,000 lb @  33’
11,000 lb @  47’
7,200 lb @ 67’
Jib Horizontal Capacity:3,200 lb @  76’
2,200 lb @ 100’
2,000 lb @ 104’
1,630 lb @  110’
w/Grapple extn to  114’
Power-Link connecting rods at First Boom, Knuckle & Jib, –15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
Continuous Rotation and Dual Planetary Gear Motors
8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
Remote or Side Control Pad Operated  6 Stabilizers – a) 2- Extra Wide Main outriggers at pedestal – 29’ 10” span – hyd tilting when retracted
2- Rear Aux Stabilizers behind t/a drives – 26’ Span
Dual front bumper mtd Stabilizers at front integral truck frame extension
Dual Hydraulic Oil Coolers, high pressure return & filter, – 100-gallon oil tank with AW-46 Enviro Friendly Biodegradable Hydraulic Oil
Lifting winch plumbed to jib end of jib – 4-ton single part line capacity – Ability to completely fold up boom without disconnecting winch
Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord
Boom Factory Painted Dark Red/Burgundy prior to assembly
Installed back of cab, with custom engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards
Load Chart in FT. & LBS
32” long x 8’ wide – Carry Deck – mounted behind boom with (2) grapple saw holders
Engineer Stability tested & Certified for 360 Degree / 100% capacity load chart capacity in all area’s & zones when stabilizers are fully deployed

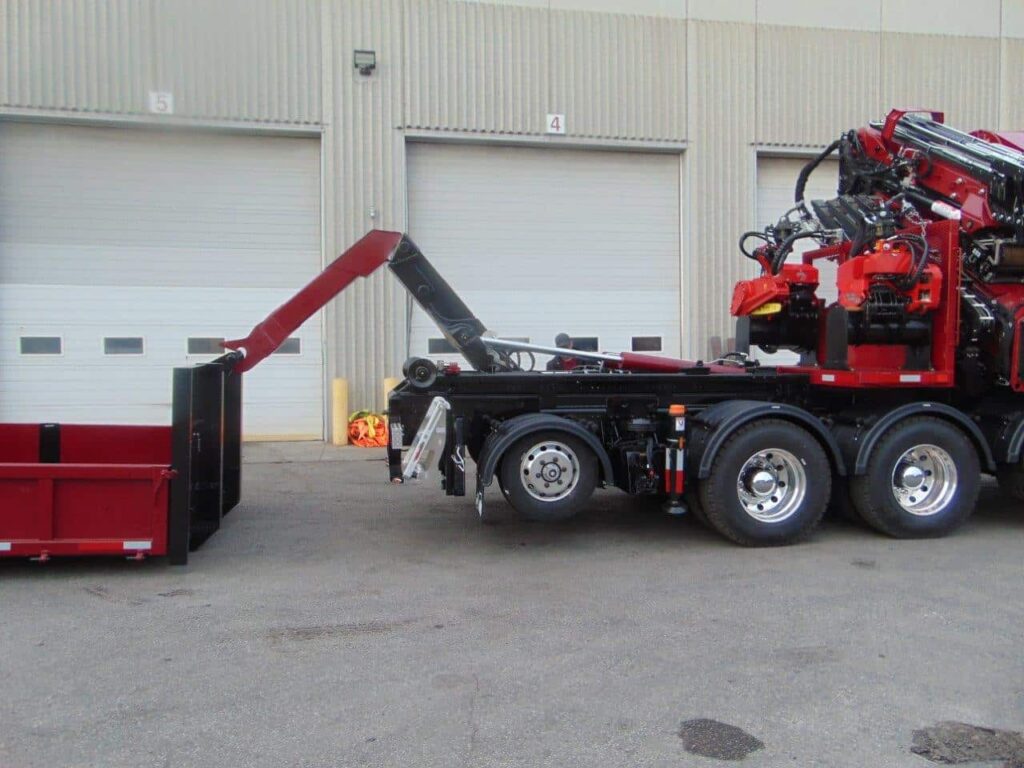

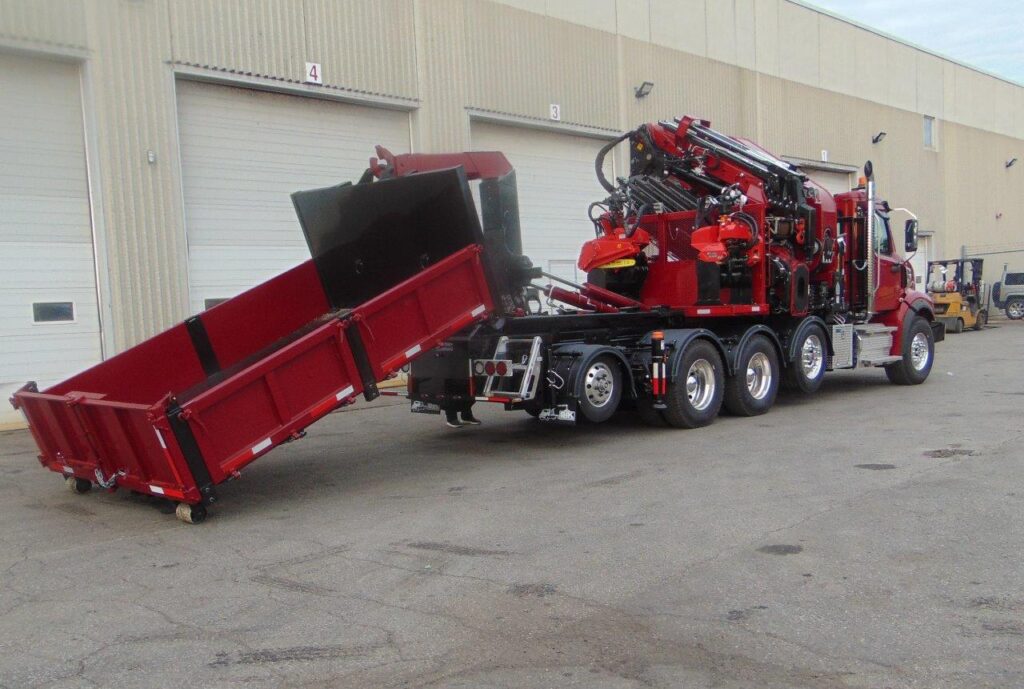

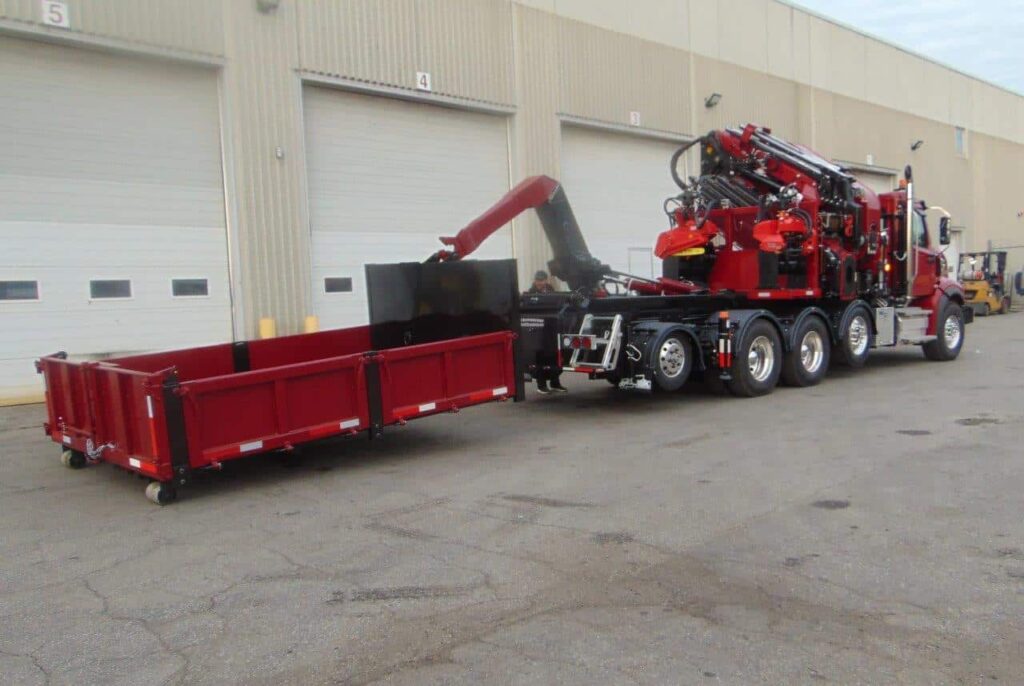

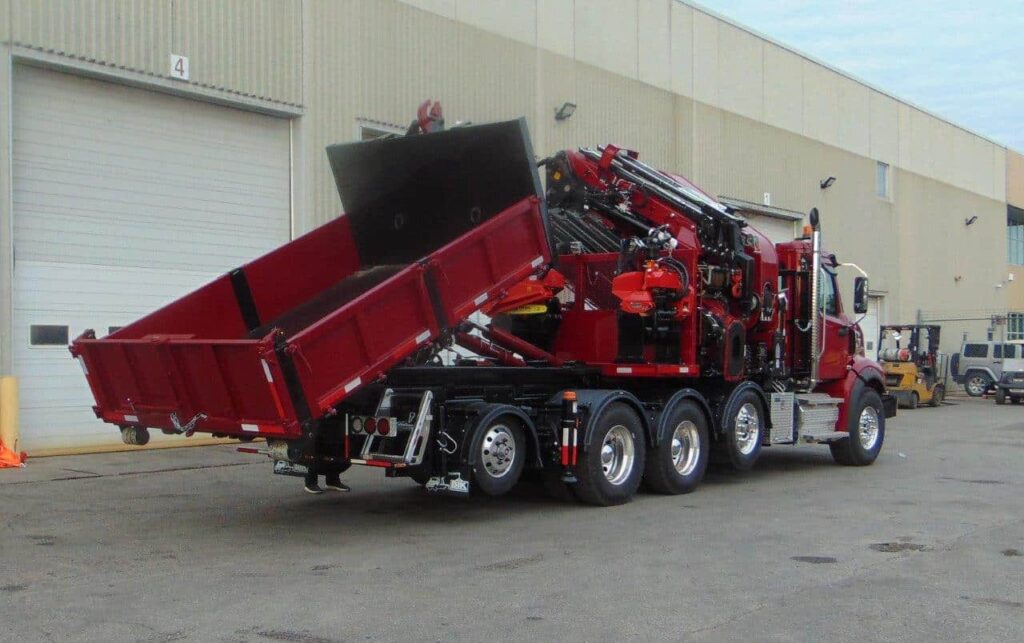

BIK HOOK LIFT SERIES: HL-30S-62-SH
30,000 lb capacity
62” hook height
sliding jib arm for containers ranging from 12 to 16’
56 degree dumping angle
cast rear rollers
In cab controls with cord
Hydraulic rear body locks
Cast bi-point articulation body supports
Painted black with Red Accents.

12’ Long x 8’ Wide

Steel Contractors bin
Dual fold down and removable sides
Removable barn doors at rear, custom removable
Ramps to drive on contractors equipment into bin
(6) pcs D-ring hooks inside box – painted black/red colors

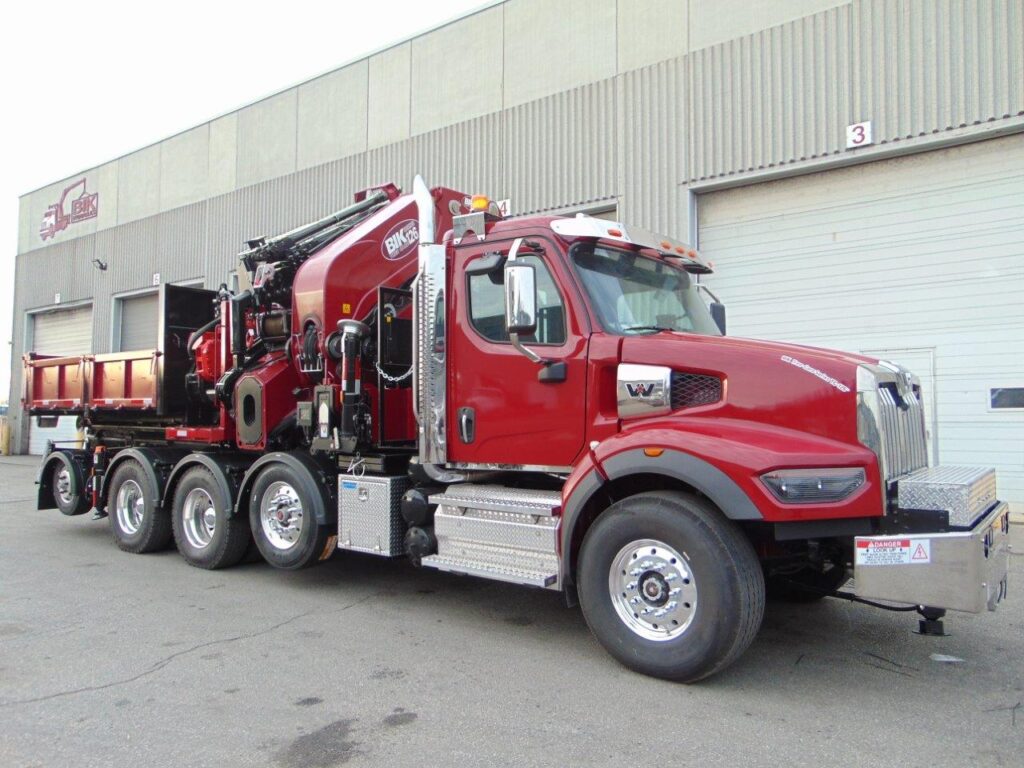

New – Western Star 49X  5-axle Truck :   97,000 lb GVWR

Truck Cab Burgandy in Color, CUMMINS 12X Diesel – 500 HP
Jake Brake,  Automated Endurant 12 spd trans.
22,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
20,000 lb self-steer lift axle ahead of t/a,  46,000 LB Rears on Neway Air-Ride with 11R22.5 tires on Aluminum rims
9,000 lb self-steer lift axle behind t/a with lo-pro 17” wheels
High RBM Double Frame w/integral front frame extension
Dual Chrome polished Exhaust on both sides of cab, Chromed Grille & Bumper
Single 100-gallon alum fuel tank, Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM  CD radio with Bluetooth, power windows & locks, air high back driver’s seat,  cruise, heated mirrors, 4-wheel lock-ups,  Air ride cab, full differential locks, spot light, fog lights, exterior sun visor, etc.

Options Included:

BIK “Hook-Lift” Series – mounted behind carry deck with wired electric over hydraulic controls
(2) pcs – 24” Alum storage boxes
(6) pcs – PVC stab pads with holders
Custom re-enforced manual extn for grapple
New Mecanil SG-280 Grapple saw
Custom 2’ deck behind boom with grapple saw holder (room for possible future 2nd saw & man basket)
12’ Steel Contractor Body with 18” fold down/removable sides, rear barn doors, floor mtd D-rings (painted black/burgundy)
Mat rack behind cab of truck
2 to 3 day on site boom feature/function familiarization by a BIK tech

Other Options Also Available:

(additional) Mecanil SG 160 Grapple saw with spare parts kit & holder
(1) Additional Manual  pull out boom extention for regular lifting hook (adds 5.5’ more reach )
(1) Aluminum single man self-levelling basket

UNIT IS FEDERAL BRIDGE LAW COMPLIANT IN ALL 51 STATES – NO NEED FOR OVERWEIGHT PERMIT
360 DEGREES FULL CAPACITY
SHORTEST WHEEL BASE TRUCK WITH 100 TON/M BOOM IN ITS CLASS – ONLY BY BIK

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838

Price on Request

Location

Toronto, ON, Canada

Truck Details

Condition

New

Chassis Make / Model

Western Star 49X

Engine Make / Model

Cummins X12

Horsepower

499 HP

Transmission

Automatic

Deck Length

12 ft.

Crane Details

Condition

New

Crane Make / Model

BIK TC-126

Hydraulic Extensions

8

Manual Extensions

1

Fly-Jib

Yes

Hydraulic Extensions (Fly-Jib)

6

Manual Extensions (Fly-Jib)

1

Crane Capacities

Max Lift Capacity

36,800 lbs

Max Vertical Reach

126 ft

Capacity at Max Vertical Reach

2050 lbs

Max Horizontal Reach

67 ft

Capacity at Max Horizontal Reach

36800 lbs

Grapplesaw Details

Grapplesaw Make/Model

Mecanil SG280 RC

Cutting Bar Size

"
