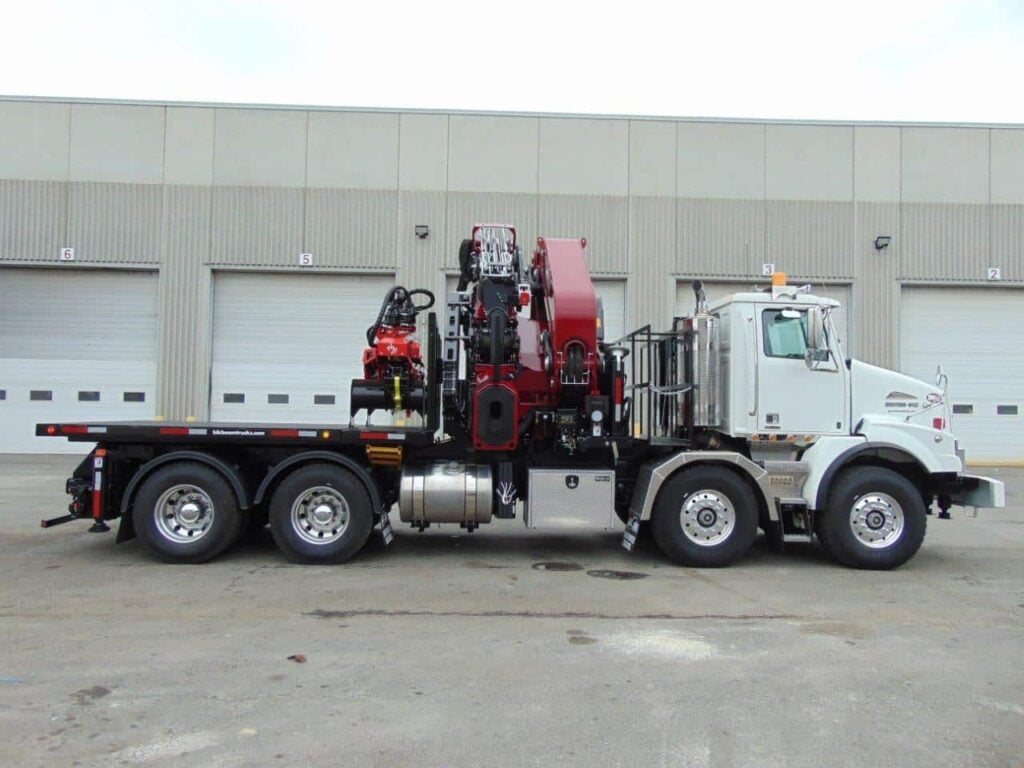

BIK TREE-CARE SERIES TC-124-XL ON NEW WESTERN STAR 4800 – 4 AXLE

Rated for 3,800 lbs @ 124 ft. vertical

Description

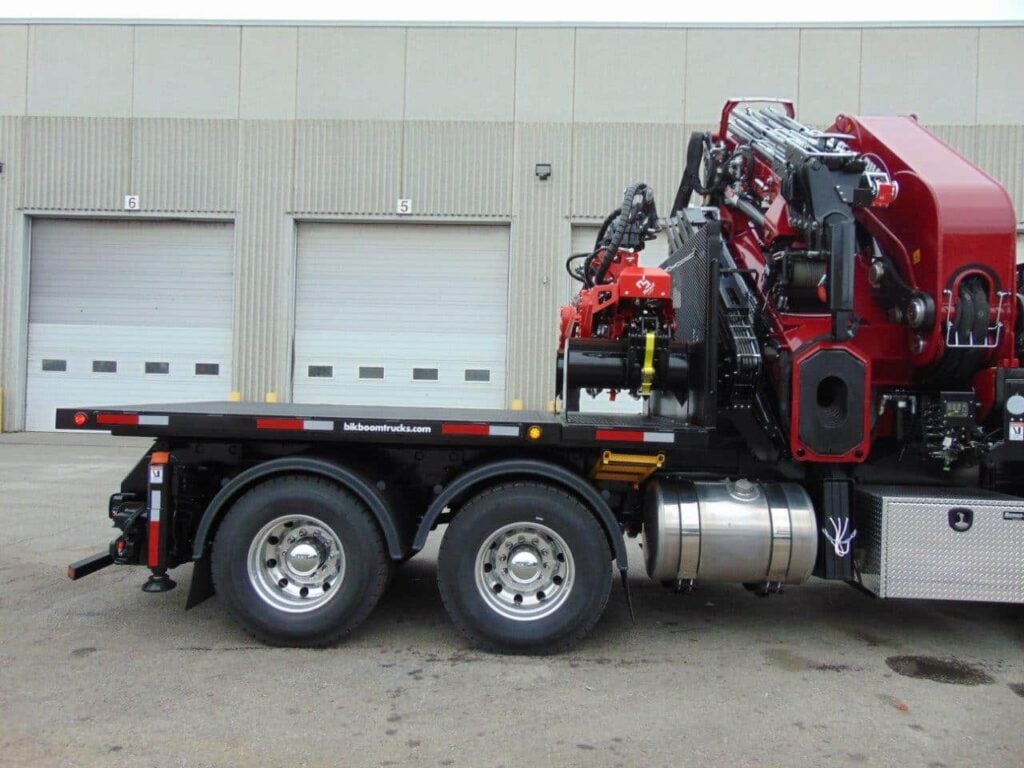

BOOM DETAILS
New – BIK Tree-Care Series TC-124-XL –  150 ton/m  Knuckle Boom

8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extension
Including (1) Grapple extention in jib
Boom Capacity of  3,800 lbs @ 124’ Vertical Reach
Main Boom Horizontal Capacity:46,000 lb @  16’
27,000 lb @  26’
18,200 lb @  38’
12,700 lb @   50’
9,800 lb @ 64’
Jib Horizontal Capacity:5,350 lb @  73’
4,500 lb @  85’
3,900 lb @  96’
3,200 lb @  108’
w/Grapple extn to  112’
PM connecting rods at First Boom and Knuckle, 15degree negative angle at 1st knuckle, 25 degree negative angle at jib
Continuous Rotation and Dual Planetary Gear Rotation
Special Extra High Tensile Steel Structure
Hydraulic Extra Wide Main outriggers at pedestal – 33’ – 6” span – hydraulic tilting when retracted. Radio controlled
Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
Lifting winch on boom plumbed to jib
DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, load chart  in FT. & LBS.
Load Tested & Installed back of cab, with integral sub-frame to meet or exceed all CMVSS Standards
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components

TRUCK DETAILS

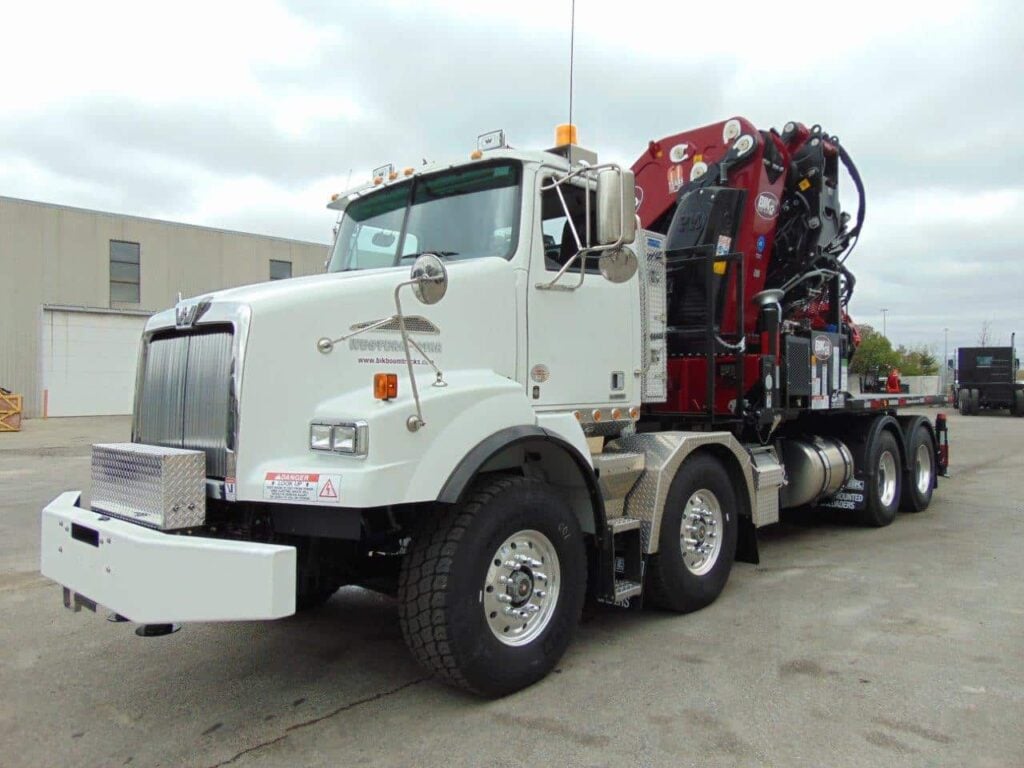

New – Western Star 4800 Sloped Short Nose T/A Steer-T/A Rear  – 4 Axle:  92,000 lb GVWR

DD-13 Diesel – 470 hp with Jake
Eaton Ultrashift 18spd Automated Trans.
(2) x 20,000 LB fronts with 425 / 65R22.5 tires,  52,000 LB Rears on  Tuftrac Susp.
Double Frame
Polished ALCOA Aluminum Wheels front and outer rear

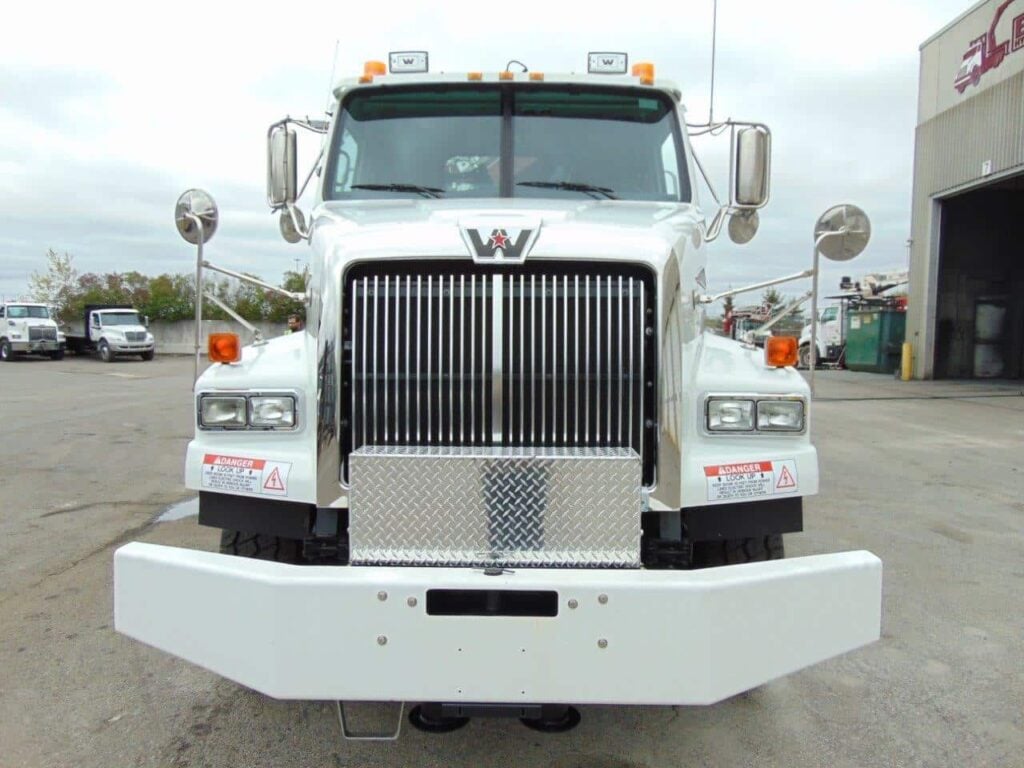

Dual Chrome single polished Exhaust, Chrome Grille &  Bumper
Dual 80 gallon aluminum fuel tank

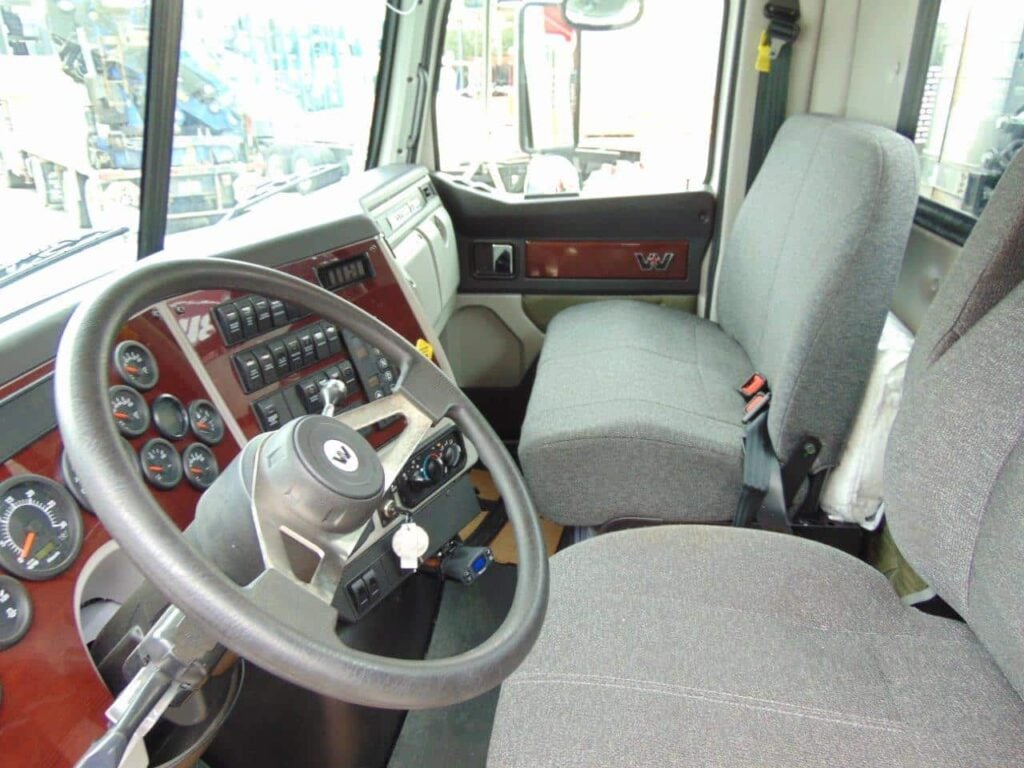

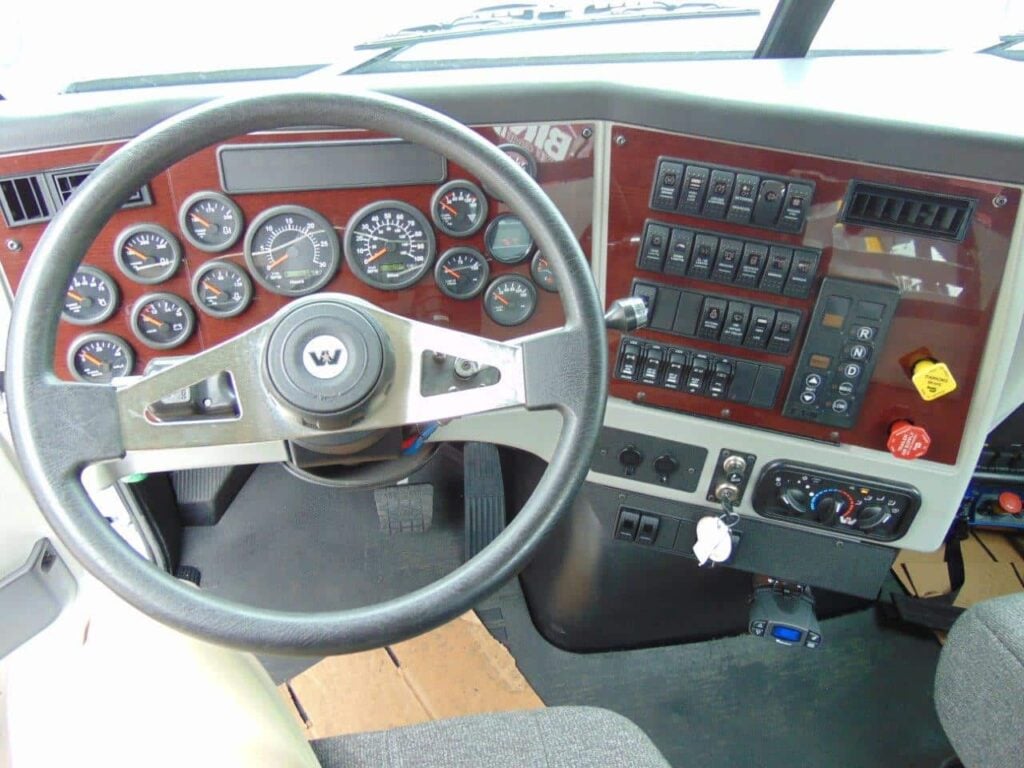

Loaded with Options including: A/C, Tilt/Telescopic steering, top level  Interior,  AM/FM/CD,   air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power  window both sides , power mirrors &  door locks, Air ride cab, trailer air tow package, truck cab white colour,  5th wheel on at tandems w/ramps, etc.

Also Included:

(6) pcs – 2” PVC stab pads w/holders
(2) pcs  Alum storage boxed installed
Custom re-enforced manual extension for grapple
Mecanil SG-280 Grapple Saw with spare parts kit
Custom 2’ deck behind boom with grapple saw holder(s)

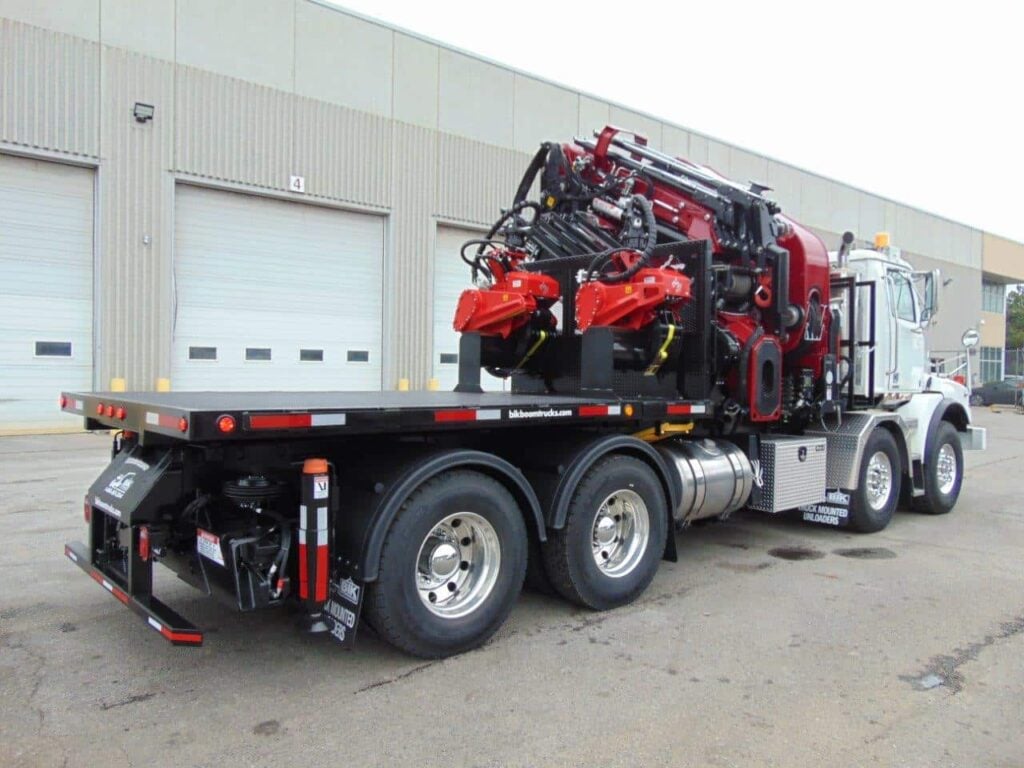

8’ removable carry deck over 5th wheel,
Spot lights on main boom and on jib
2 to 3 day Boom feature/operation familiarization by BIK tech at your location

Other Options Also Available:

(additional) Mecanil SG 160 Grapple saw with spare parts kit & holder
(1) Additional Manual  pull out boom extension for regular lifting hook (adds 5.5’ more reach)
(1) Aluminum single man self-levelling basket
Hook Lift Deck removal system or Dump Body (instead of 5th wheel or flat deck)

360 DEGREES FULL CAPACITY
SHORTEST WHEEL BASE TRUCK WITH 150 TON/M BOOM IN ITS CLASS – ONLY BY BIK

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838

Price on Request

Location

Toronto, ON, Canada

Truck Details

Condition

New

Chassis Make / Model

Western Star 4800

Engine Make / Model

Detroit Diesel DD13

Horsepower

469 HP

Transmission

Automatic

Crane Details

Condition

New

Crane Make / Model

BIK TC-124 XL

Hydraulic Extensions

8

Manual Extensions

1

Fly-Jib

Yes

Hydraulic Extensions (Fly-Jib)

6

Manual Extensions (Fly-Jib)

1

Crane Capacities

Max Lift Capacity

46,000 lbs

Max Vertical Reach

124 ft

Capacity at Max Vertical Reach

3800 lbs

Max Horizontal Reach

64 ft

Capacity at Max Horizontal Reach

46000 lbs

Grapplesaw Details

Grapplesaw Make/Model

Mecanil SG280 RC

Cutting Bar Size

"
