Replacing the Drive Belt (SG220/SG280)​

1. Remove the drive belt cover. (17mm hex)

2. Loosen the two bolts for the saw motor (10mm allen)

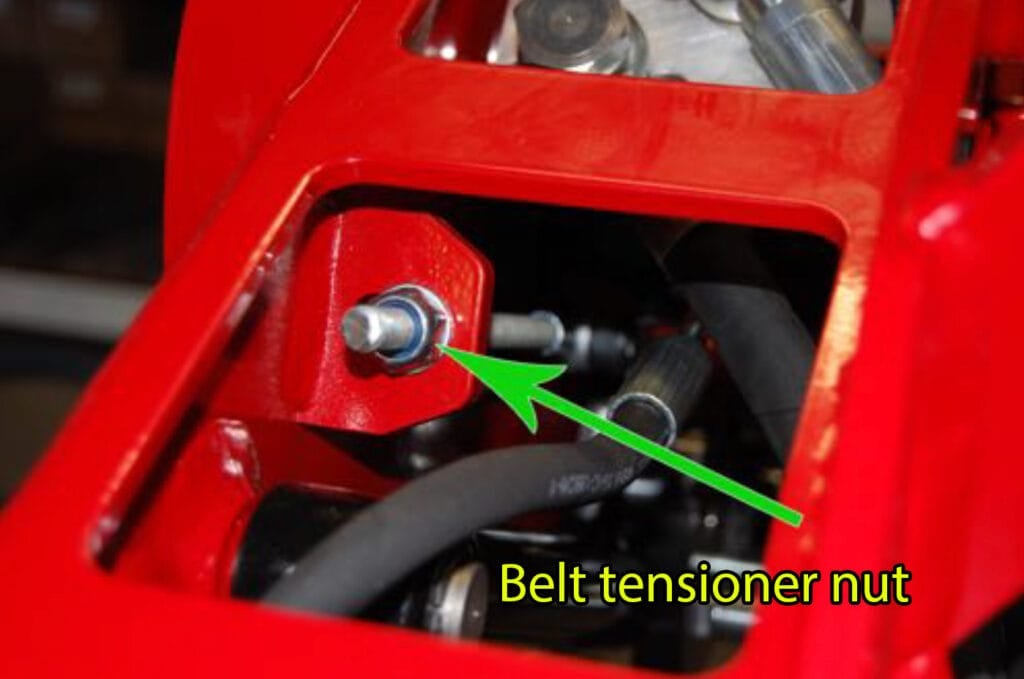

3. Tension belt by tightening the indicated nut just inside the saw cassette

4. Check the tension is correct. The belt should be possible to move about 1/4″ in both directions. It should by quite firm when trying to move it.
