The machine must always be turned off during service and repairs. Always wear proper PPE!
Make sure no oil gets in contact with the drive belt.
1. Open the lid on the saw unit

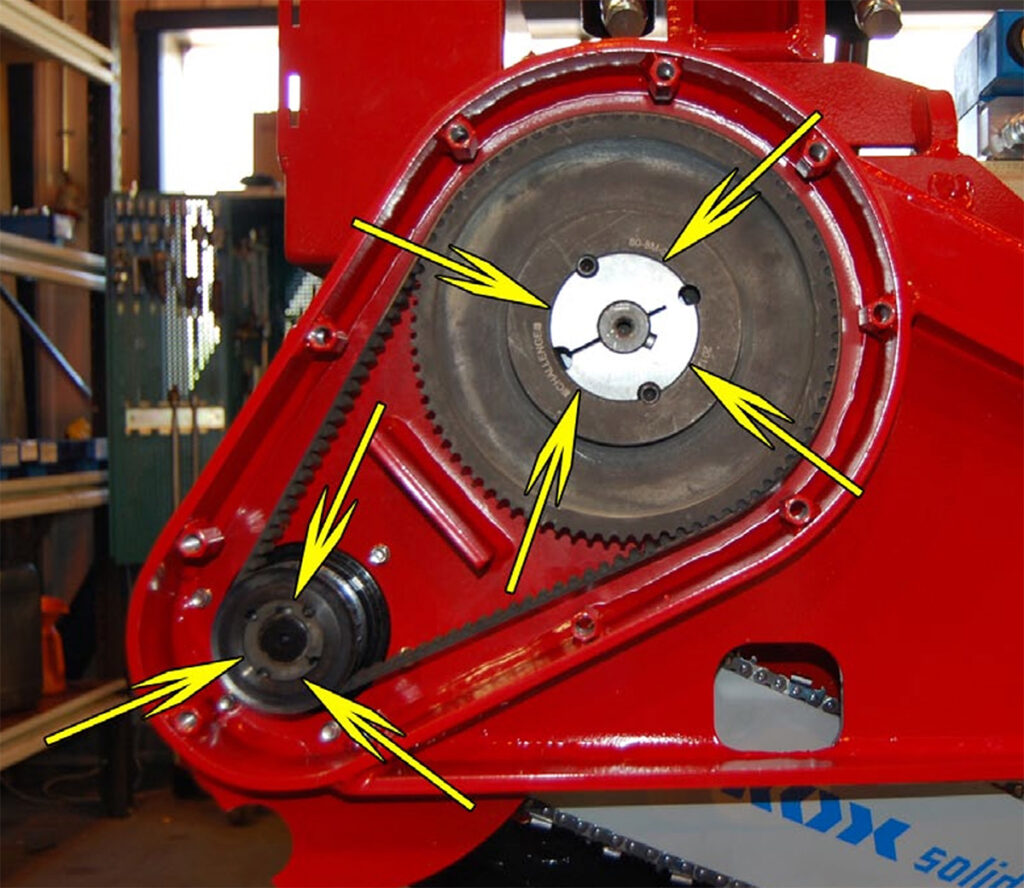

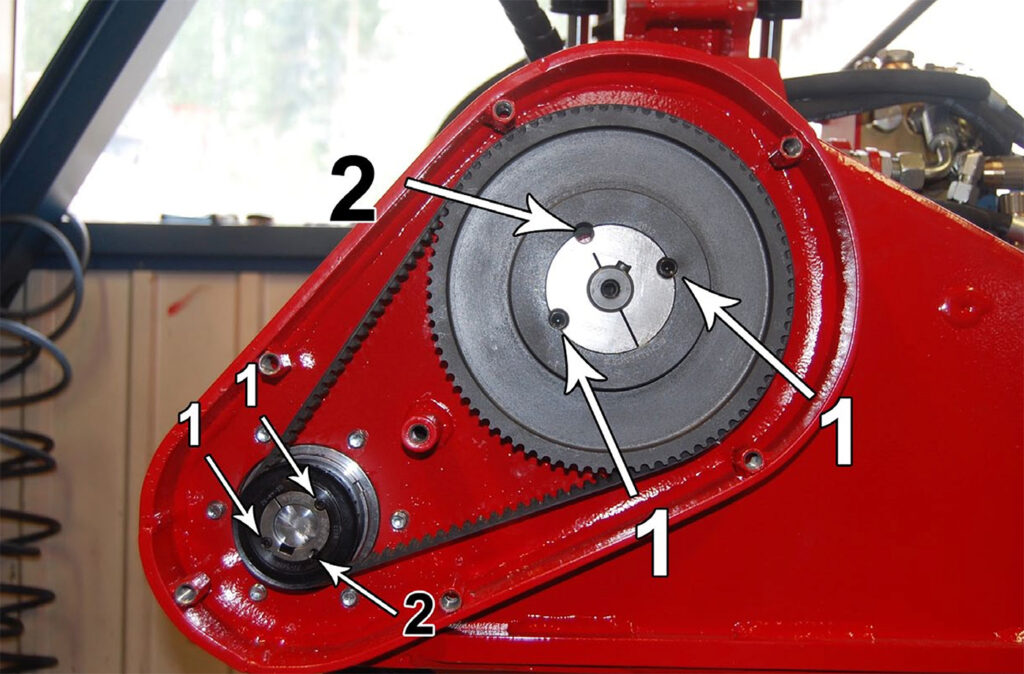

2. Remove the bigger drive wheel by unscrewing the screws labeled #1
3. Use one of the removed #1 screws and put it in the third hole #2 to press the wheel outward off the axle.
4. Repeat these steps for the smaller wheel.

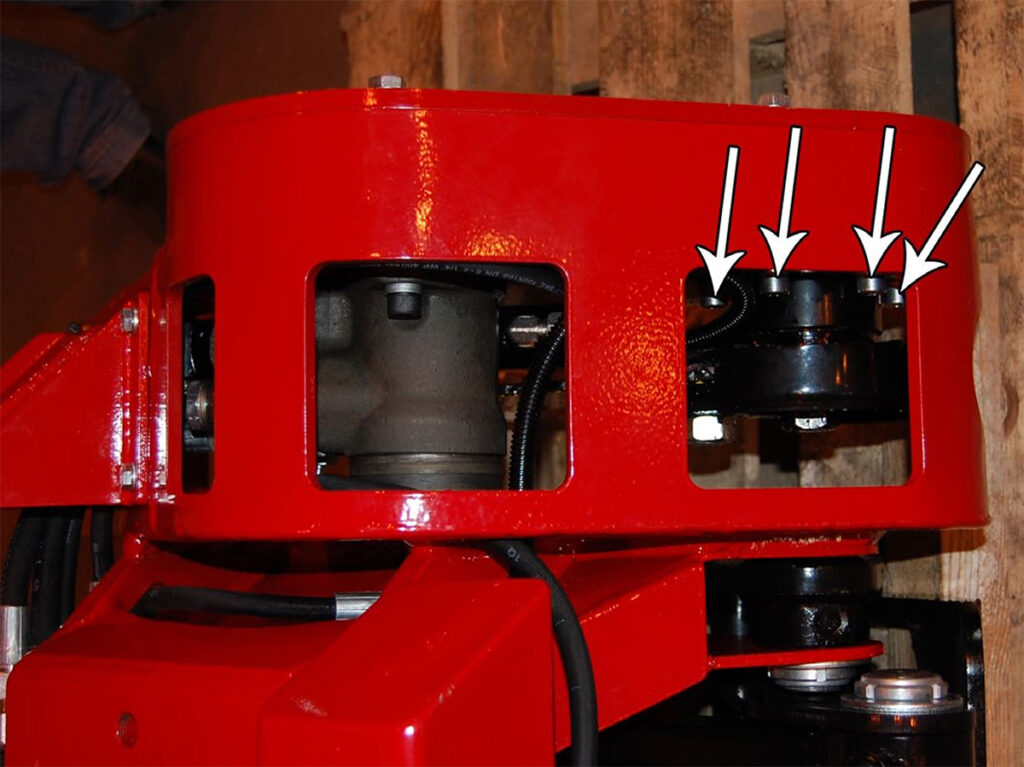

5. Remove the saw bar mount assembly by unscrewing the 6 bolts holding it.

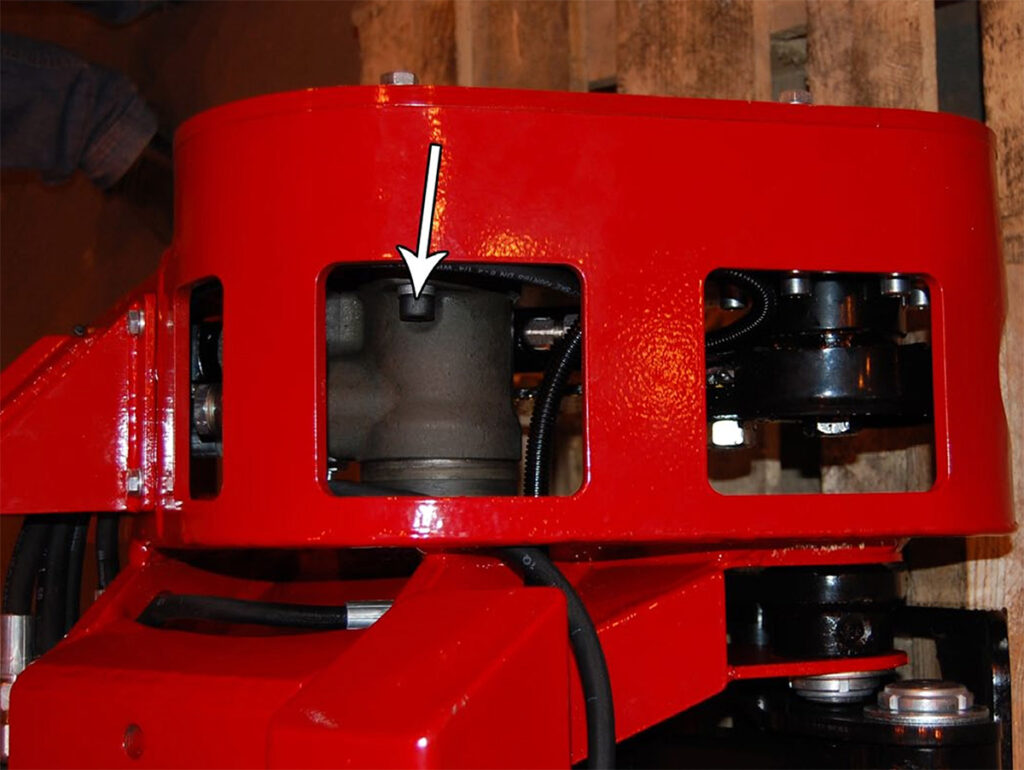

6. Before removing the saw motor, make detailed notes of how the hydraulic lines are connected to make it easier to re-install the new motor properly.
7. Remove the hydraulic lines, and then the saw motor (2 bolts)

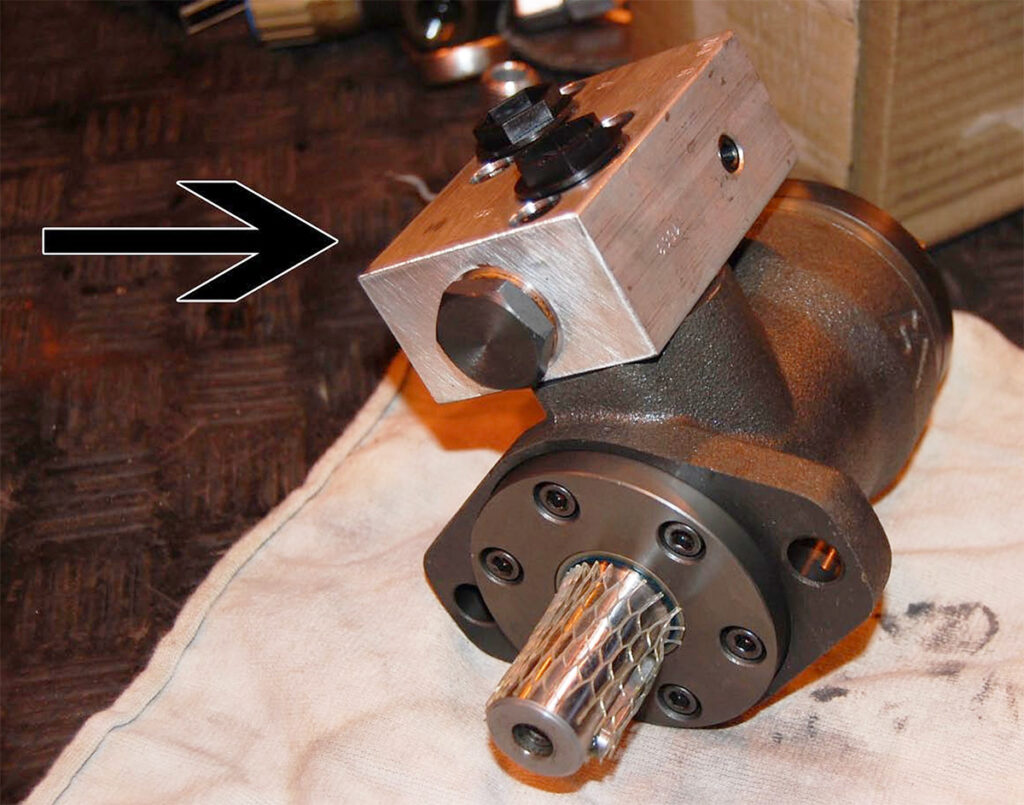

8. Move the hydraulic block from the old saw motor to the new motor. It’s important that this be mounted in the same way as before, with the plugged hole facing the same direction as the axle.
9. Re-assemble the parts in the reverse order
10. When reassembling the parts, remember to put some oil (not Vaseline) between the drive wheel and the centerpiece.
