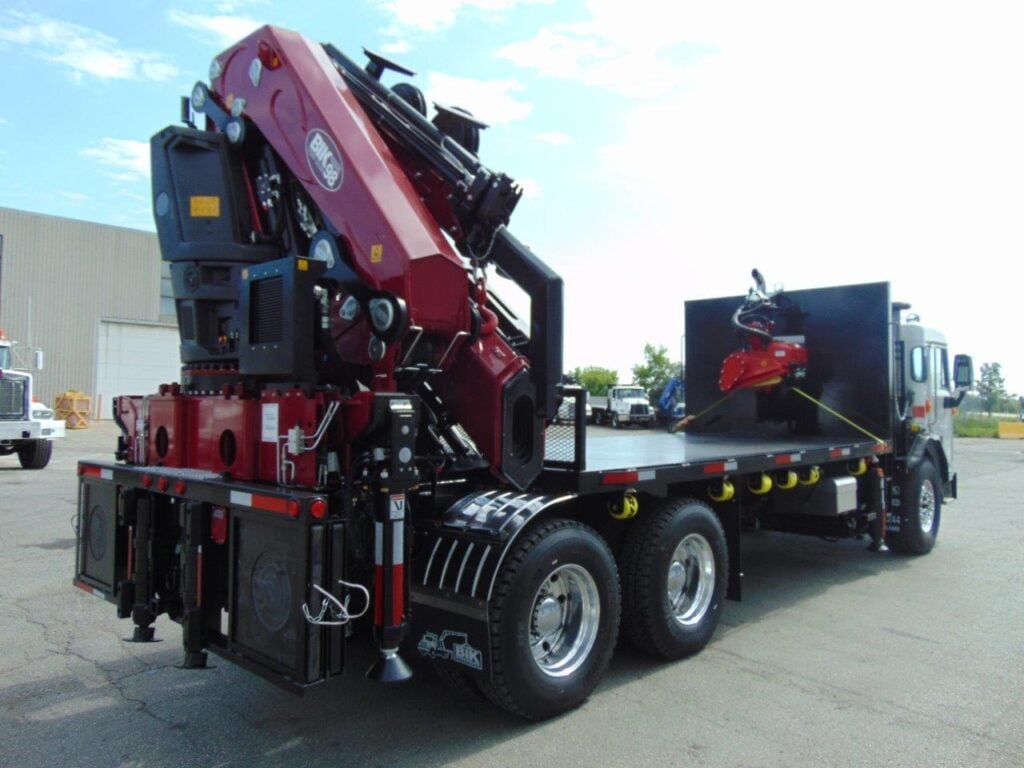

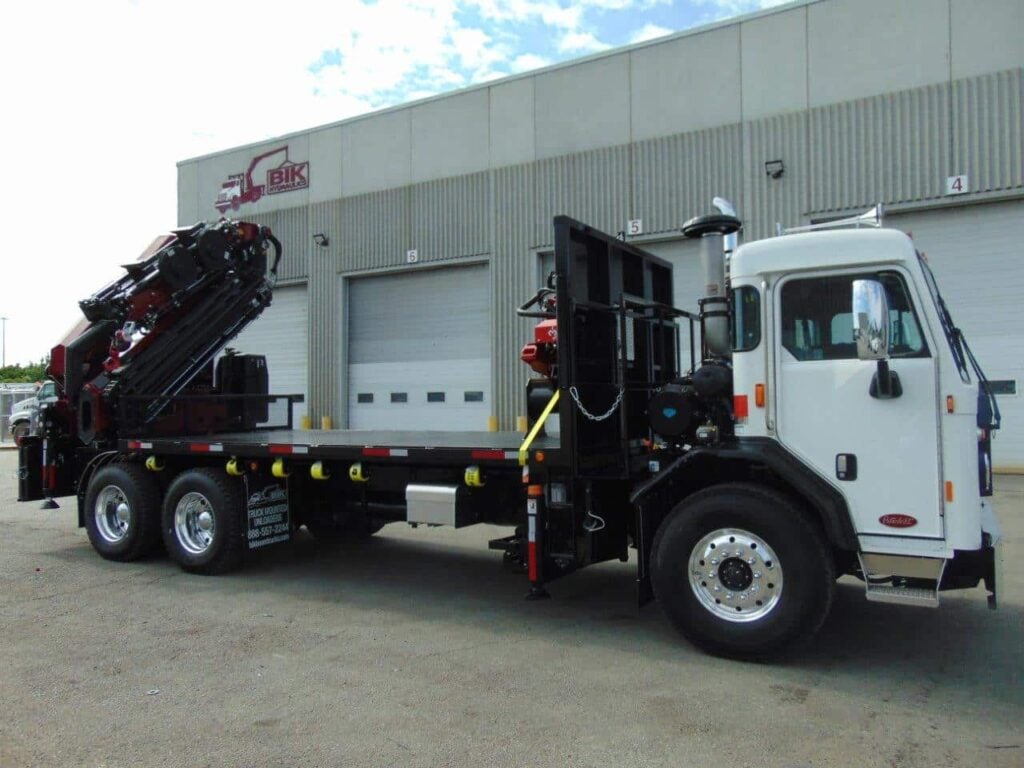

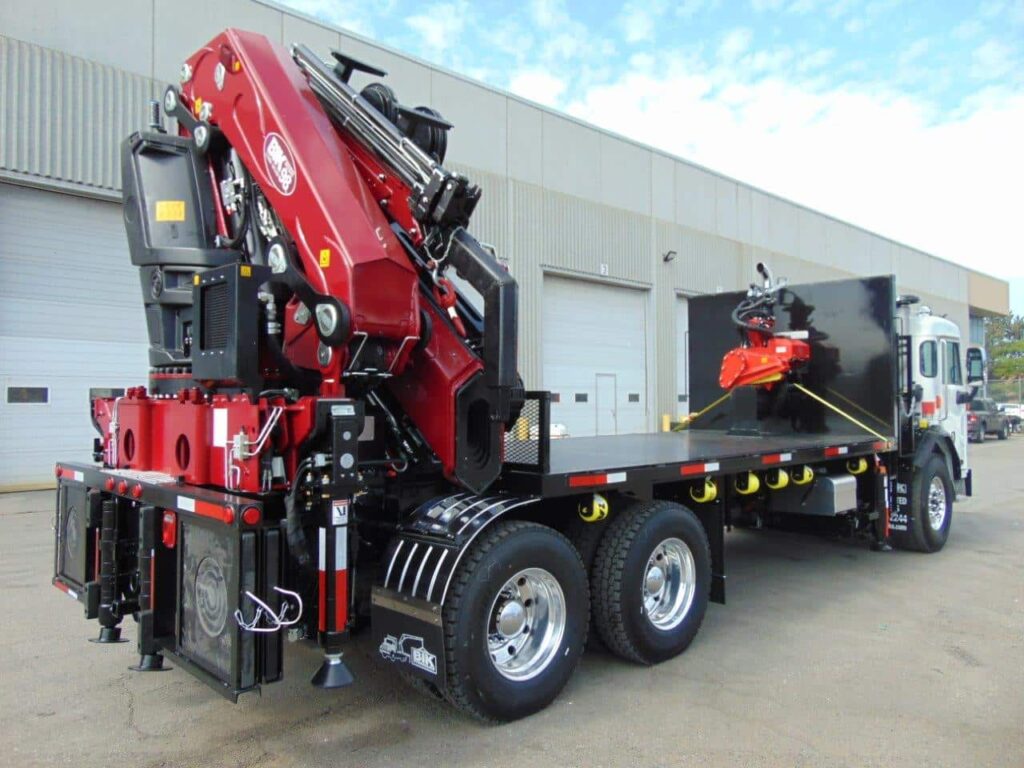

BIK TREE-CARE SERIES TC-98/104 ON NEW PETERBILT 520

Rated for 2,230 lbs @ 98 ft. vertical

Description

BOOM DETAILS

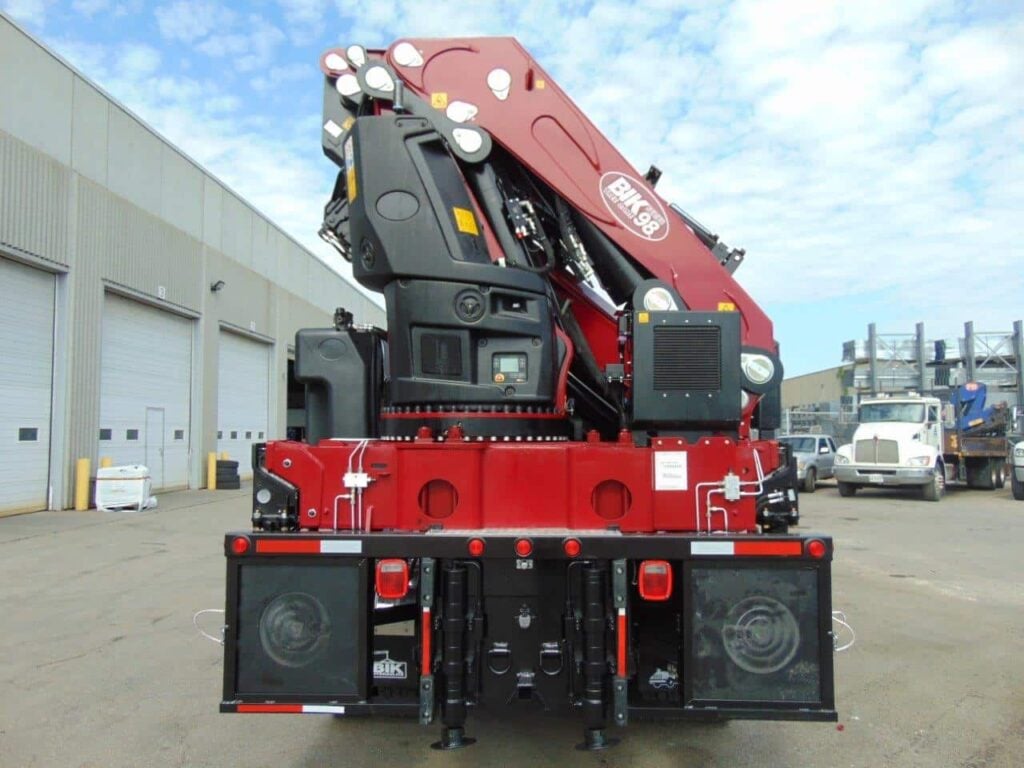

New – BIK Tree-Care Series TC-98 – 54.5 ton/m  Knuckle Boom

6 ext Knuckle Boom w/Detachable 3 ext jib + 1-grapple extn Including (1) Grapple extension in jib,
Boom Capacity of  2,230 lbs @ 98’ Vertical Reach
Main Boom Horizontal Capacity:21,000 lbs @ 14’
10,900 lbs @ 25’ 8”
6,800 lbs @ 38’ 8”
4,830 lbs @ 53’ 6”
Jib Horizontal Capacity:2,100 lbs @ 63’
1,850 lbs @ 75’ 4”
1,700 lbs @ 82’
Grapple main extension to 86’
“Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders
Planetary Gear Rotation Motor  & Continuous Boom Rotation – for maximized slewing torque and reliability
15 Degree negative angle  on main knuckle,  20 degree negative angle on jib   – Hyd Extra Wide Main outriggers at base – 25’ 7” total span
Auxiliary Stabilizers – Extra wide type – 21’ span, hyd out & down type at rear – Front Bumper Hyd Stabilizer  – 100% stability 360 degrees
Two Hydraulic Oil Coolers, high pressure return filter and 100 gal custom hydraulic oil tank with Enviro-Friendly AW-46 weight Hyd Oil
Tandem pump / split valve pressure system for optimum speed for simultaneous  multi function use
DANFOSS Proportional Control Valve at Top Seat
SCANRECO Proportional Radio Remote Control w/2 batteries, charger
Engineer Stability load tested and certified
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components

DECK DETAILS
New  – 17’  x 102” Steel Flat Deck:

Steel headboard w/ Side Wrap Winches
Steel Checker plate Floor
Winch bar and holder
Integral 6” sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting
X-braces & support
Deck painted Black
2-Deck access Ladders at Headboard
2-Ladders at rear
Reflectors and Mud-flaps
6 – Sliding Winches and track under deck

TRUCK DETAILS

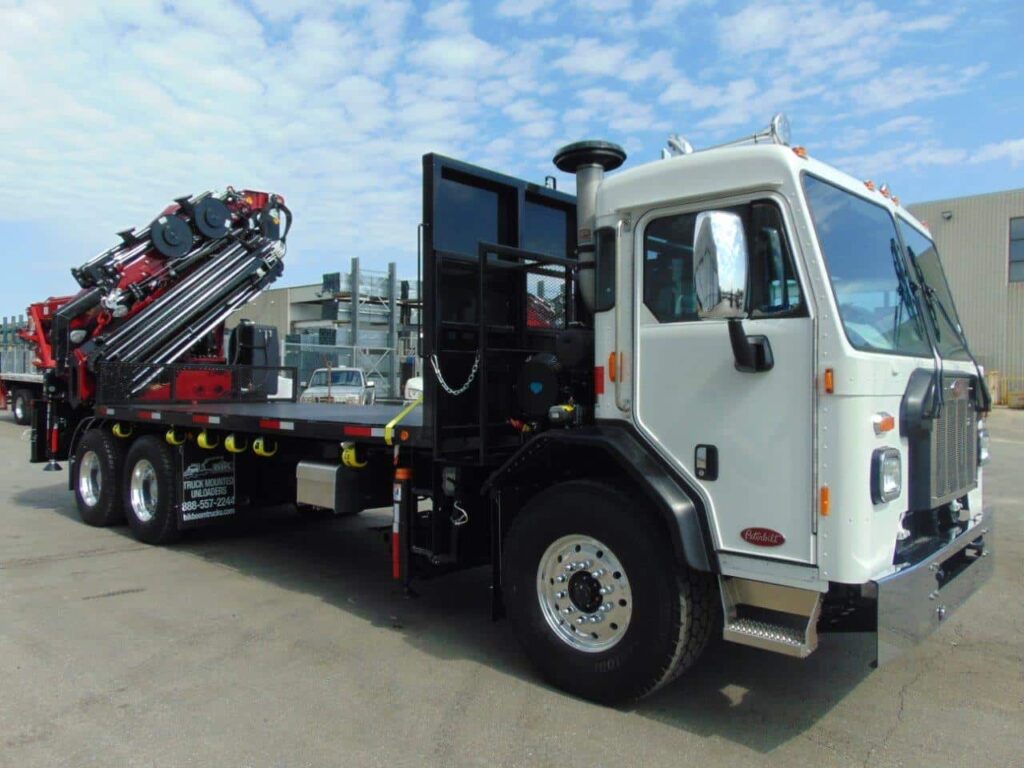

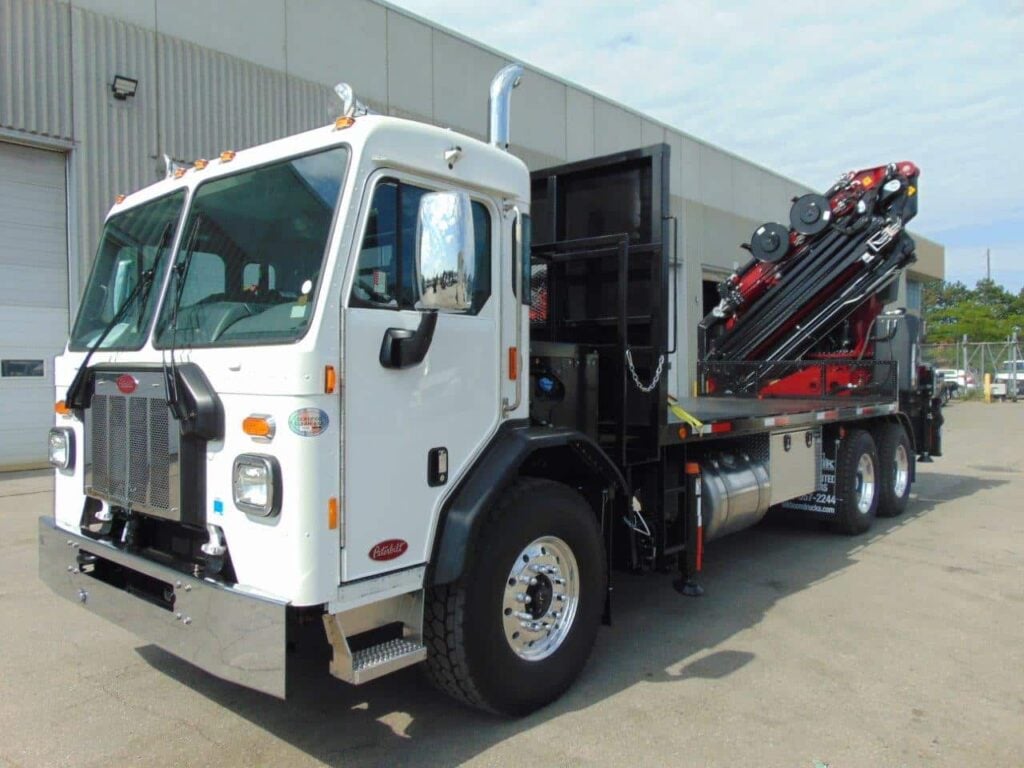

New – Peterbilt 520 Cab-Over  3-axle  Diesel  Truck: 64,000 lb GVWR

Cummins Diesel  370 hp,  1,250 ft/lb torque
Allison 6 spd Automatic Trans.
20,000 lb fronts with 425/65R22.5 Front Floatation tires on  Alum rims
44,000 LB Rears on Neway air ride Suspension, with 11R22.5 tires on alum outer rims
Double frame chassis
54” spread at tandems

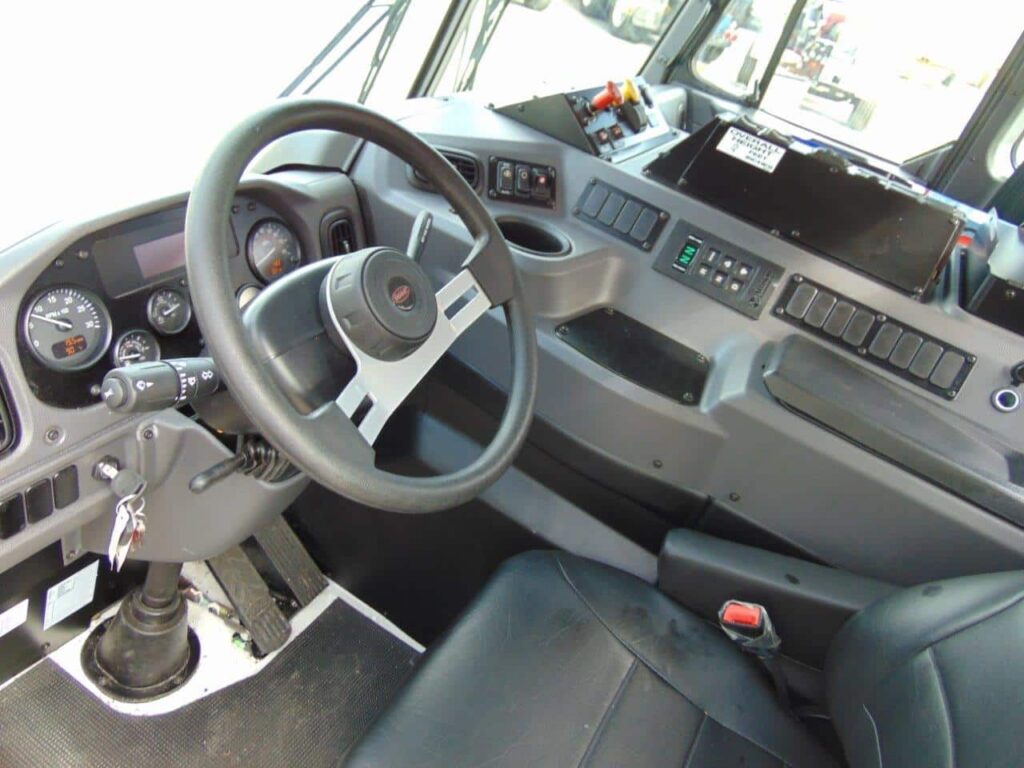

Truck Features Include: Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows, power/htd mirrors, chrome bumper and grill, heated mirrors, eng block heater, painted ext visor,  rear wheel lock ups, 80 gal alum fuel tank, etc.

Options Included:

(5) pcs – 2” PVC stab pads w/holders
(2) pc Alum storage boxes installed
Custom re-enforced manual extension for grapple
New Mecanil SG-280 Graple saw with spare parts
2 to 3 day on site boom feature/function familiarization by a BIK tech
Optional Version –  TC-104 – 104’ Vert Reach Version

SHORTEST TURNING TRUCK IN ITS CLASS
OPTIONAL VERSION –  TC-104 – 104’ VERT REACH VERSION

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838

Price on Request

Location

Toronto, ON, Canada

Truck Details

Condition

New

Chassis Make / Model

Peterbilt 520

Engine Make / Model

Cummins

Horsepower

369 HP

Transmission

Automatic

Deck Length

17 ft.

Crane Details

Condition

New

Crane Make / Model

BIK TC-98

Hydraulic Extensions

6

Manual Extensions

1

Fly-Jib

Yes

Hydraulic Extensions (Fly-Jib)

3

Manual Extensions (Fly-Jib)

1

Crane Capacities

Max Lift Capacity

21,000 lbs

Max Vertical Reach

98 ft

Capacity at Max Vertical Reach

2230 lbs

Max Horizontal Reach

53.6 ft

Capacity at Max Horizontal Reach

21000 lbs

Grapplesaw Details

Grapplesaw Make/Model

Mecanil SG280 RC

Cutting Bar Size

"
