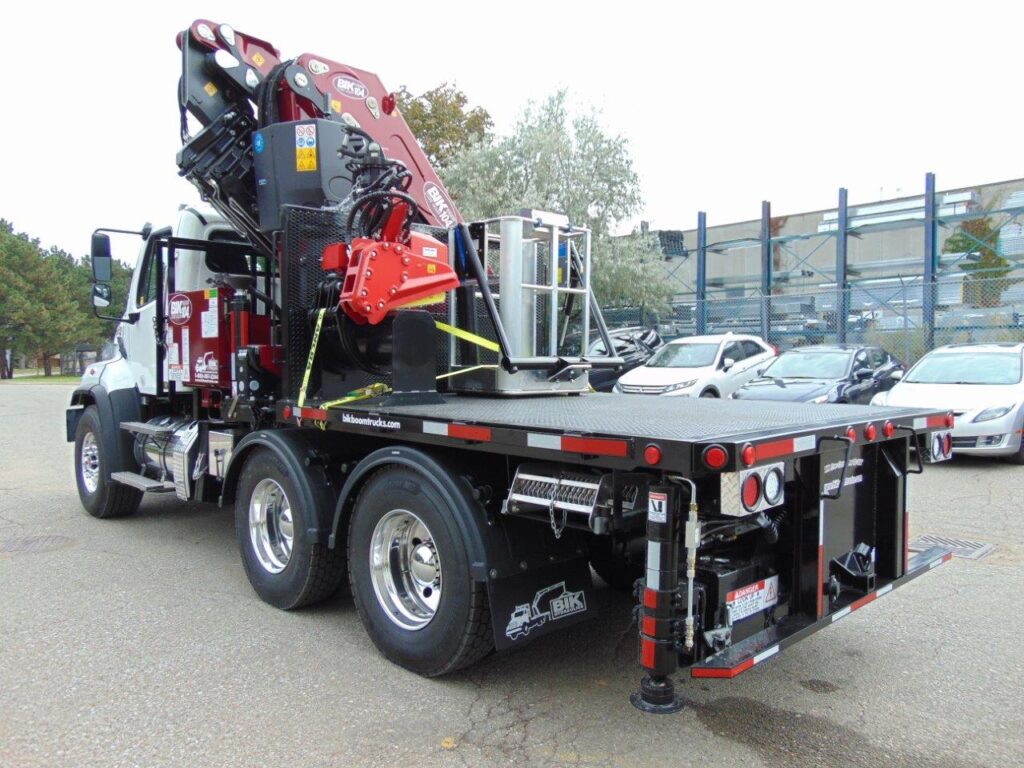

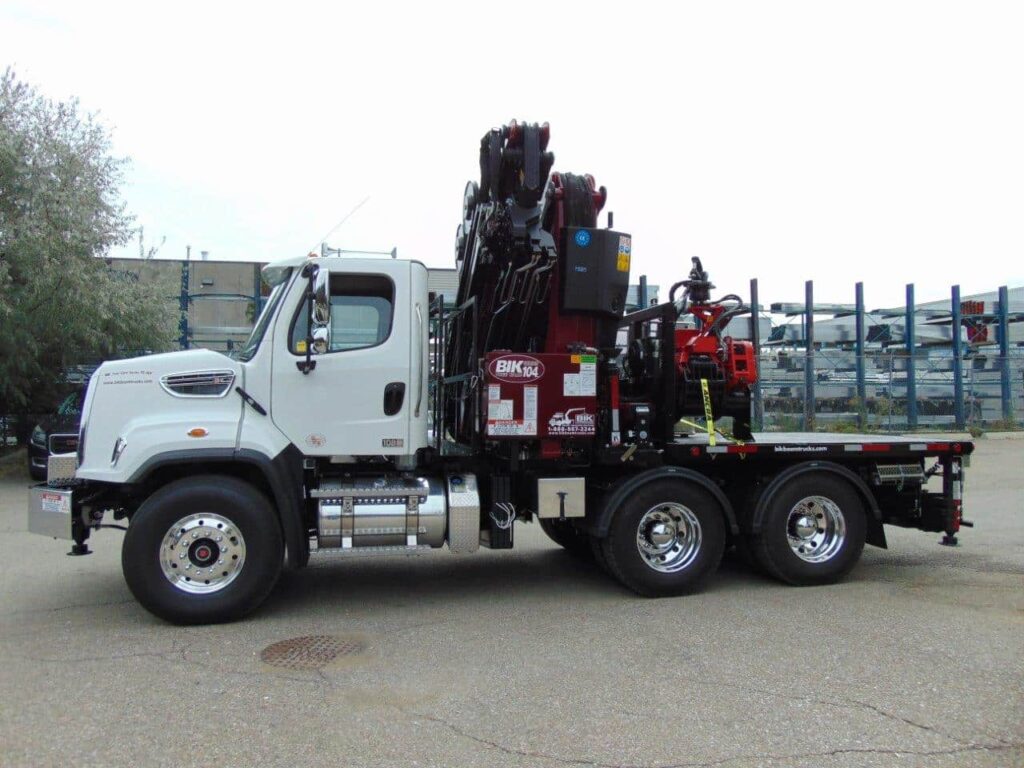

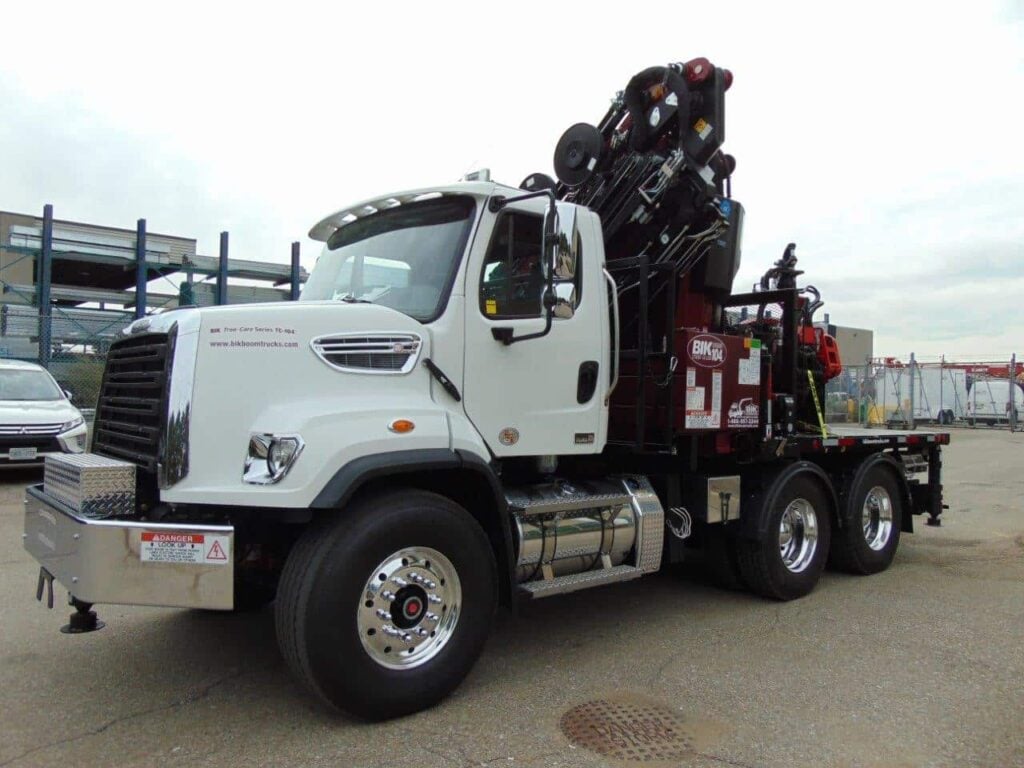

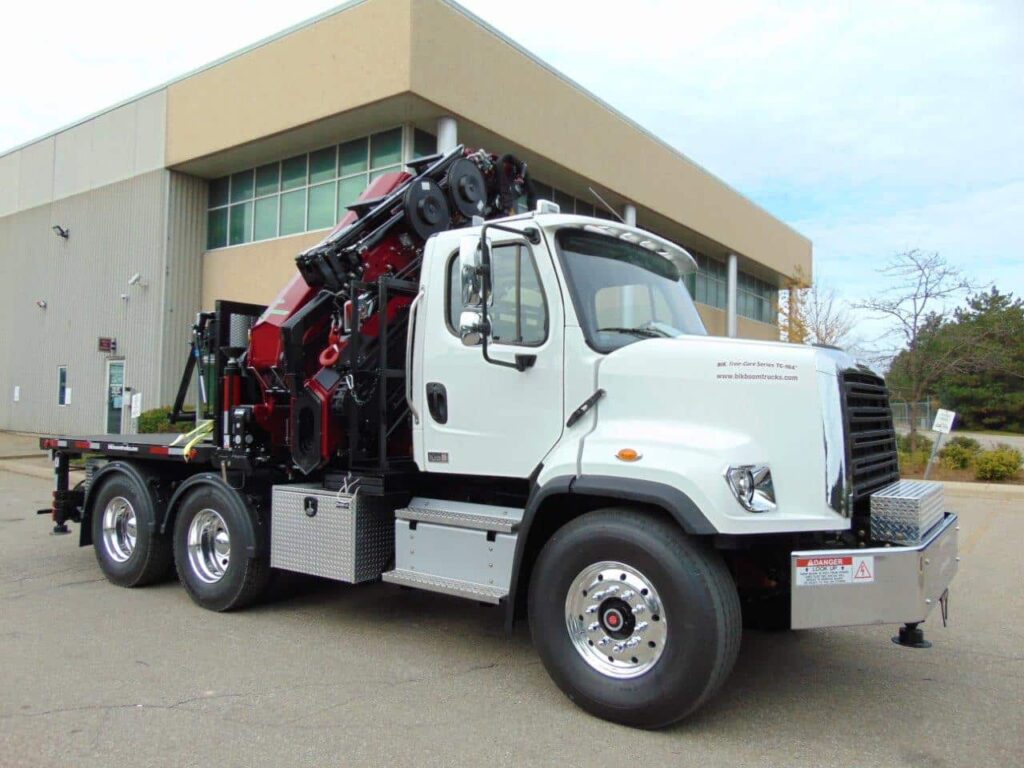

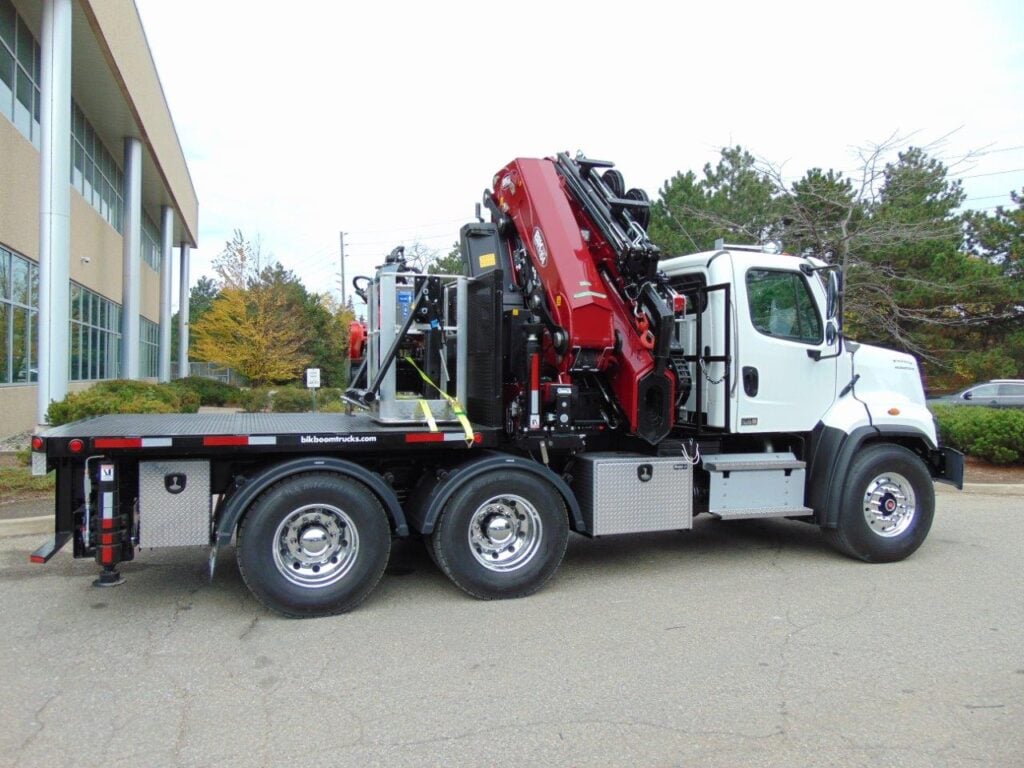

BIK TREE-CARE SERIES TC-98/104 ON NEW FREIGHTLINER

Rated for 2,230 lbs @ 98 ft. vertical

Description

BOOM DETAILS
New – BIK Tree-Care Series TC-98 – 54.5 ton/m  Knuckle Boom

6 ext Knuckle Boom w/Detachable 3 ext jib + 1-grapple extn Including (1) Grapple extension in jib,
Boom Capacity of  2,230 lbs @ 98’ Vertical Reach
Main Boom Horizontal Capacity:21,000 lbs @ 14’
10,900 lbs @ 25’ 8”
6,800 lbs @ 38’ 8”
4,830 lbs @ 53’ 6”
Jib Horizontal Capacity:2,100 lbs @ 63’
1,850 lbs @ 75’ 4”
1,700 lbs @ 82’
Grapple main extension to 86’
“Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders
Planetary Gear Rotation Motor  & Continuous Boom Rotation – for maximized slewing torque and reliability
15 Degree negative angle  on main knuckle,  20 degree negative angle on jib   – Hyd Extra Wide Main outriggers at base – 25’ 7” total span
Auxiliary Stabilizers – Extra wide type – 21’ span, hyd out & down type at rear – Front Bumper Hyd Stabilizer  – 100% stability 360 degrees
Two Hydraulic Oil Coolers, high pressure return filter and 100 gal custom hydraulic oil tank with Enviro-Friendly AW-46 weight Hyd Oil
Tandem pump / split valve pressure system for optimum speed for simultaneous  multi function use
DANFOSS Proportional Control Valve at Top Seat
SCANRECO Proportional Radio Remote Control w/2 batteries, charger
Engineer Stability load tested and certified
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components

DECK DETAILS

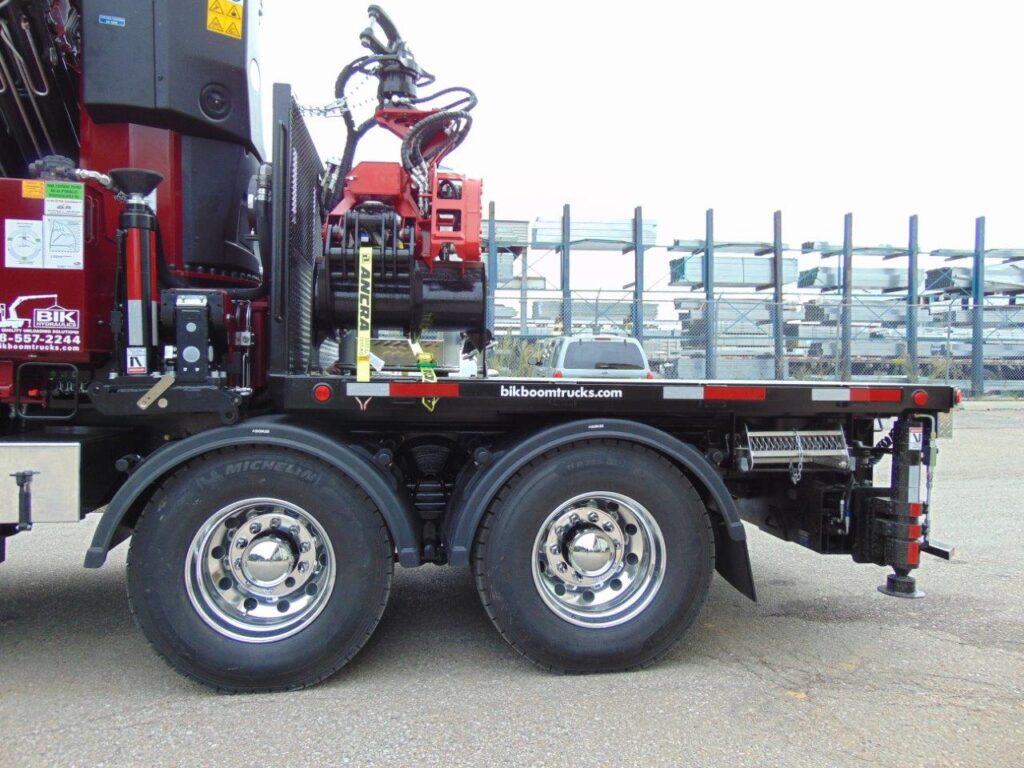

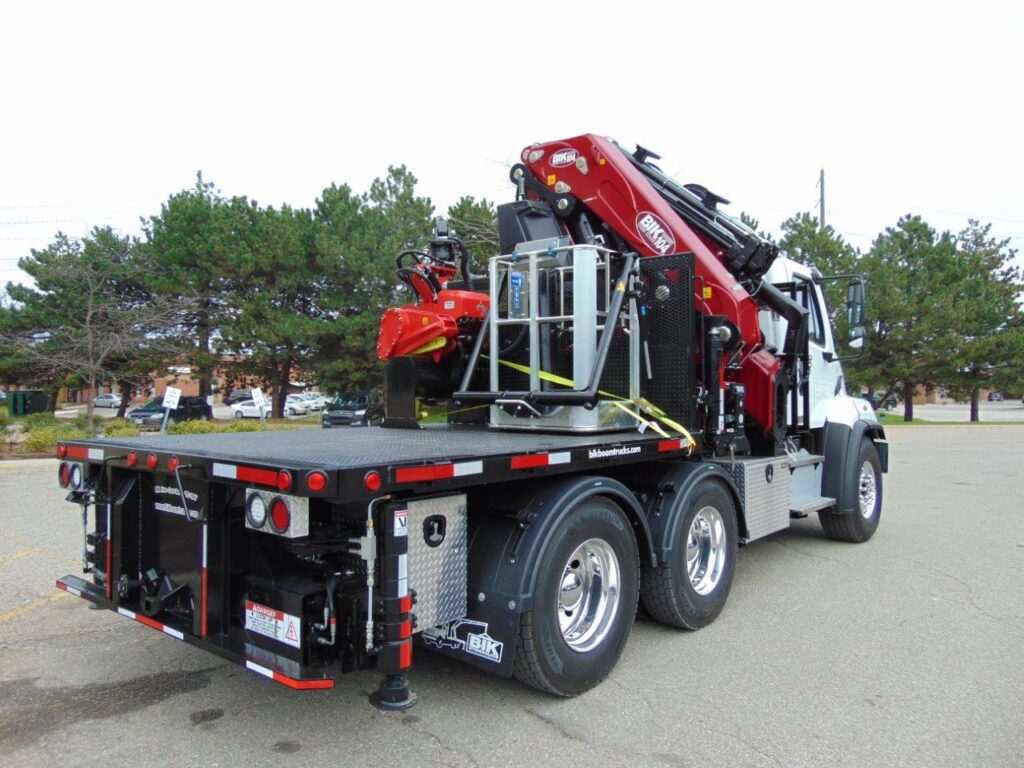

New – 10’ 8” x 102”  Steel Checker plate Flat Deck

Checker plate steel deck surface
48” head board, sliding winch straps
Rub rail & pockets on side
Dual sided access ladders
Primed & painted gloss black

TRUCK DETAILS
New – Freightliner 108SD  4-axle  Day Cab Truck:   69,000 lb GVWR

CUMMINS Diesel
380 HP – Allison Automatic Trans.
20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
40,000 LB Rears on Tuftrac suspension with 11R22.5 tires on Aluminum outer rims
9,000 lb self steer tag axle behind t/a with 17.5” tires/alum rims
166” wheel base
Double Frame with integral front bumper frame extension (for front stabilizer)
Chrome single polished Exhaust pipe side of cab

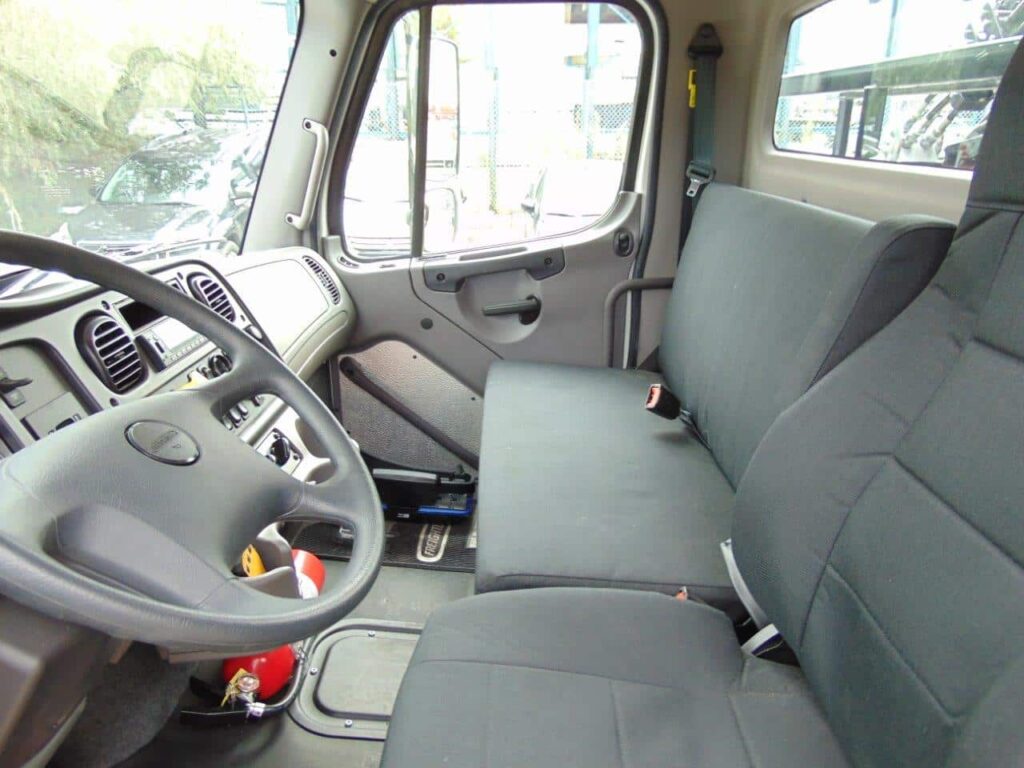

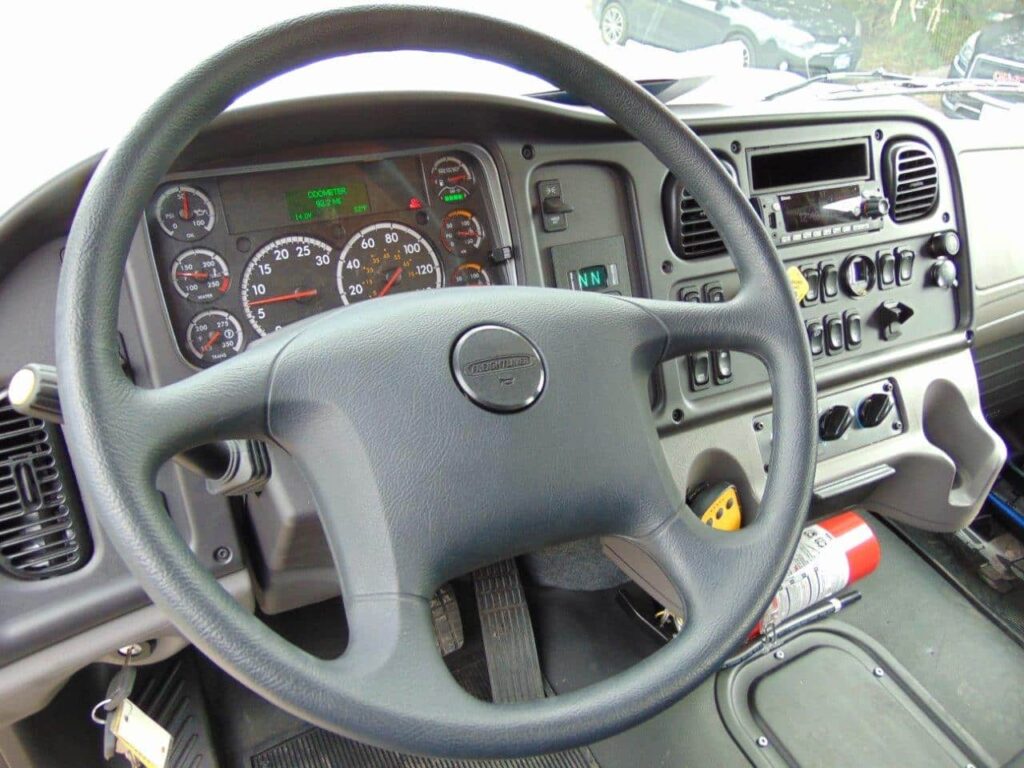

Chromed Grille & Bumper, single 80 gallon alum fuel tank,  A/C, Tilt/Telescopic steering, AM/FM radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise,  heated mirrors, inter-axle and diff lock-ups, Cab White,  Air ride cab, full differential locks, exterior sun visor, etc

Also Included:

(5) pcs – 2” PVC stab pads w/holders
(2) pc Alum storage boxes installed
Custom re-enforced manual extn for grapple,
New Mecanil SG-280 Grapple saw with spare parts
2 to 3 day on site boom feature/function familiarization by a BIK tech

Options at Extra Cost:

Additional grapple saw – Mecanil SG 160 Grapple saw with spare parts kit and holder on deck
Front Wheel Drive conversion – to be able to have 6-wheel drive for off-road use
Draw plate at rear of truck frame with Heavy Duty air pintle hook and Reese receiver w/brake actuator (dual hitches)
Aluminum single man self-levelling basket
Mat rack behind the cab or mounted on top of deck at rear  a
TC-104 – 104’ Vert Reach Version – with Mecanil SG-220 (instead of SG-280)



SHORTEST TURNING TRUCK IN ITS CLASS
ALL-WHEEL DRIVE 6×6 UNITS AVAILABLE

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838

Price on Request

Location

Toronto, ON, Canada

Truck Details

Condition

New

Chassis Make / Model

Freightliner 108 SD

Engine Make / Model

Cummins

Horsepower

380 HP

Transmission

Automatic

Deck Length

10.8 ft.

Crane Details

Condition

New

Crane Make / Model

BIK TC-98

Hydraulic Extensions

6

Manual Extensions

1

Fly-Jib

Yes

Hydraulic Extensions (Fly-Jib)

3

Manual Extensions (Fly-Jib)

1

Crane Capacities

Max Lift Capacity

21,000 lbs

Max Vertical Reach

98 ft

Capacity at Max Vertical Reach

2230 lbs

Max Horizontal Reach

53.6 ft

Capacity at Max Horizontal Reach

21000 lbs

Grapplesaw Details

Grapplesaw Make/Model

Mecanil SG280 RC

Cutting Bar Size

"
