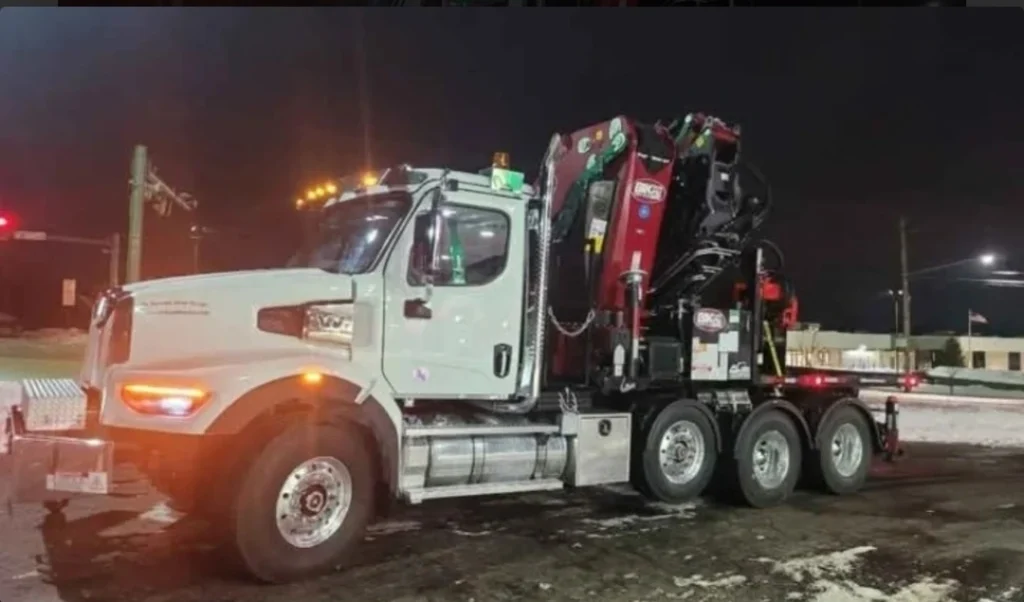

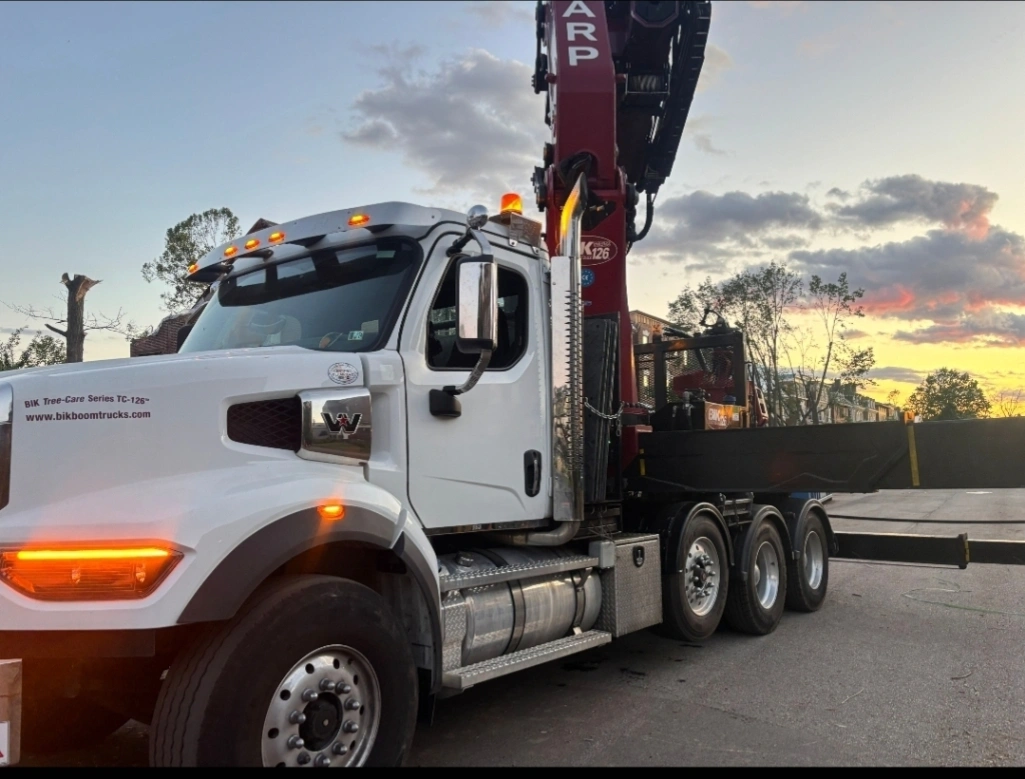

BIK Tree-Care Series TC-126 On 2022 Western Star 49x ( fully loaded )

10,000 Miles / 1,200 crane hours

—— ️Included——
✅️SG220 mecanil Grapple Saw

Heavy duty custom rigging ( paid $3,500) included

✅️One pallett of 4×6 cribbing.

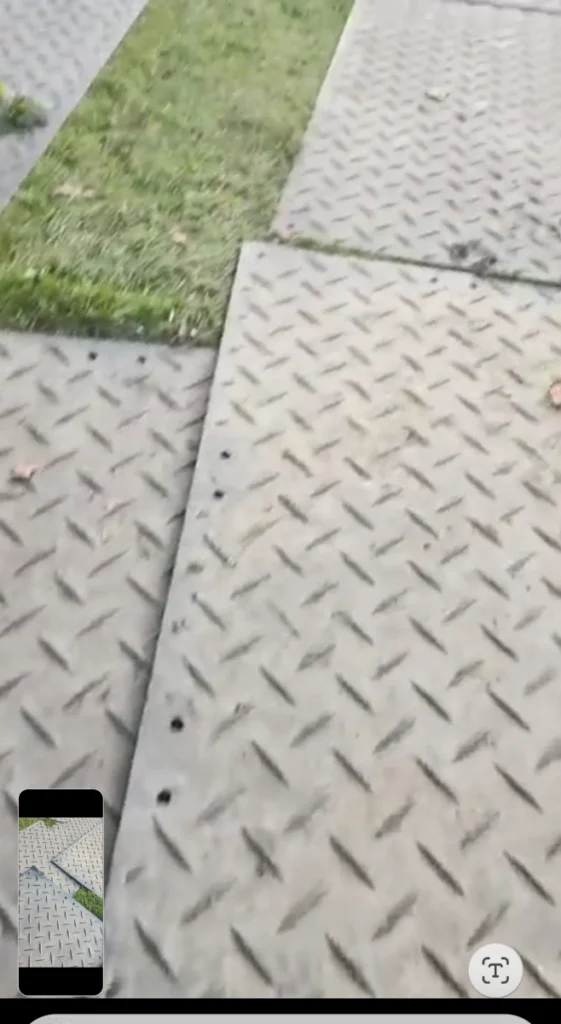

✅️20 4X8 Ground Protection Mats
✅️Many spare parts. Hoses, bars, chains, batteries, additional remotes
Automatic. Fully loaded with all options. trailer hitch, backup and side view cameras, tool boxes,

Crane Details

– 100 ton/m Knuckle Boom8 ext Knuckle Boom w/Detachable 6 ext jib + (1) Grapple extention on jib
Boom Capacity of 2,050 lbs @ 126’ Vertical Reach
Main Boom Horizontal Capacity:
36,800 lb @ 16’
20,000 lb @ 23’
16,000 lb @ 33’
11,000 lb @ 47’
7,200 lb @ 67’
Jib Horizontal Capacity:
3,200 lb @ 76’
2,200 lb @ 100’
2,000 lb @ 104’
1,630 lb @ 110’
w/Grapple extn to 114’
Power-Link connecting rods at First Boom, Knuckle & Jib, –15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
Continuous Rotation and Dual Planetary Gear Motors, – 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield

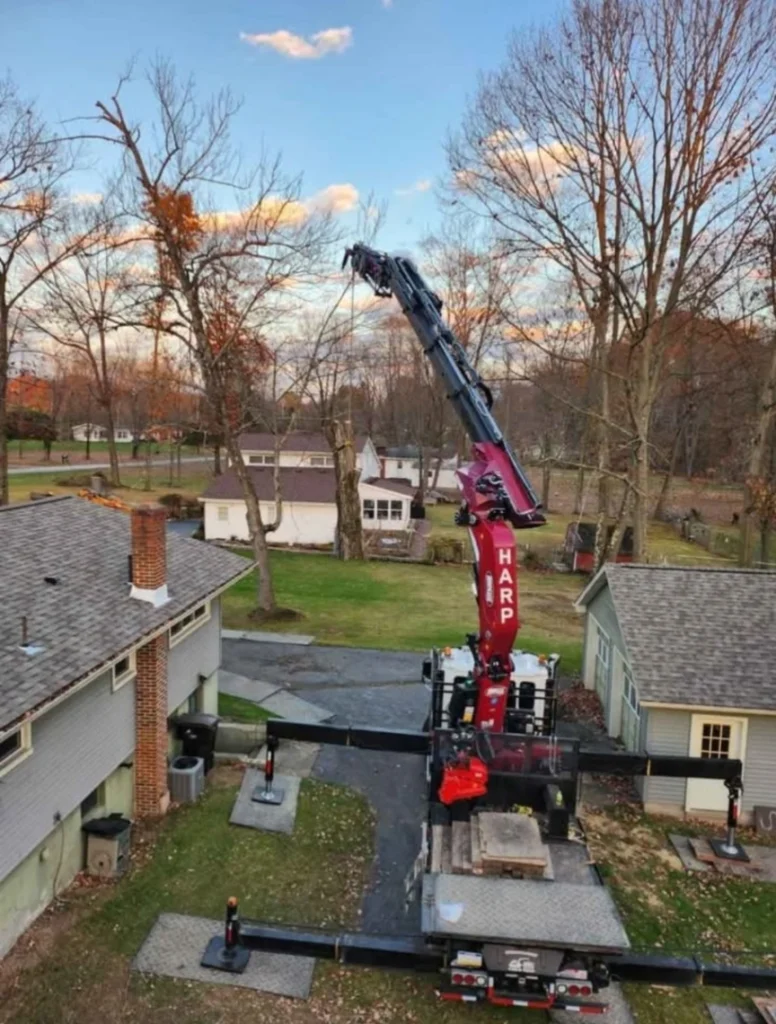

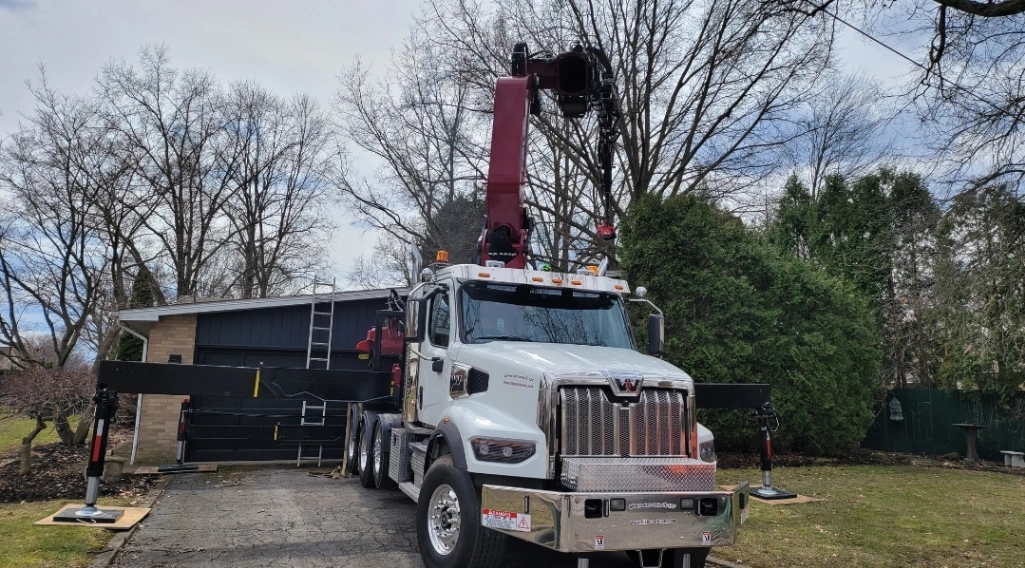

Remote or Side Control Pad Operated 6 Stabilizers – a) 2- Extra Wide Main outriggers at pedestal – 29’ 10” span – hyd tilting when retracted
2- Rear Aux Stabilizers behind t/a drives – 26’ Span
Dual front bumper mtd Stabilizers at front integral truck frame extension
Dual Hydraulic Oil Coolers, high pressure return & filter, – 100-gallon oil tank with AW-46 Enviro Friendly Biodegradable Hydraulic Oil
Lifting winch plumbed to jib end of jib – 4-ton single part line capacity – Ability to completely fold up boom without disconnecting winch
Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord
Boom Factory Painted Dark Red/Burgundy prior to assembly

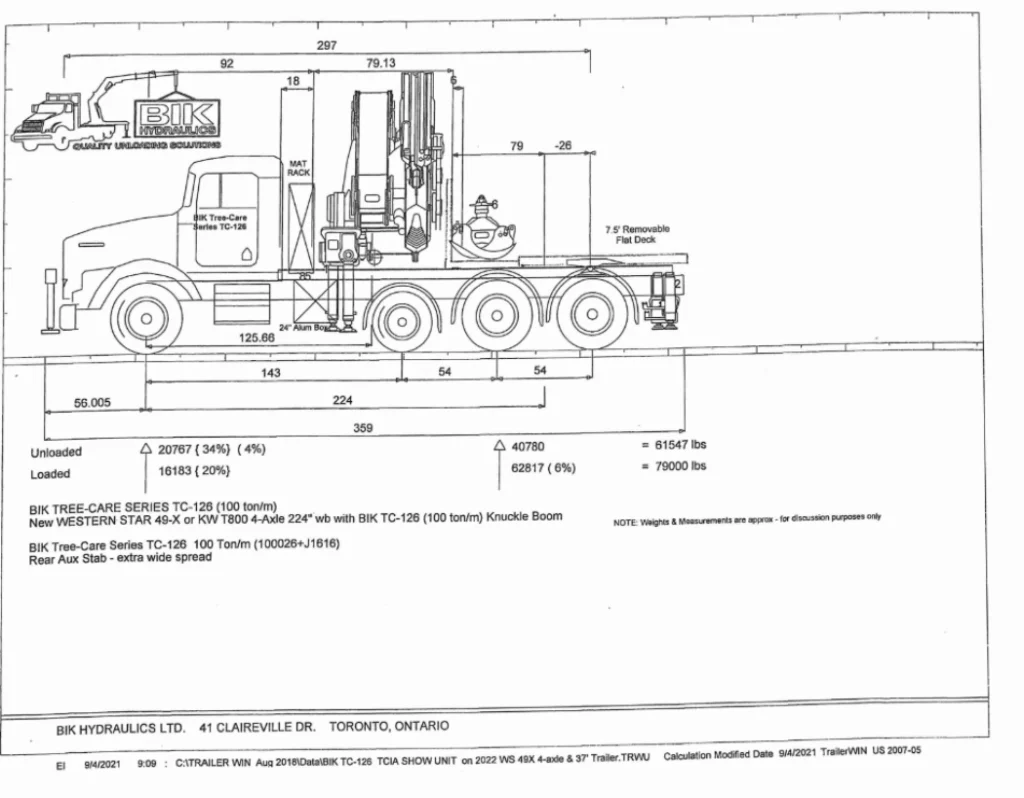

Installed back of cab, with custom engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards

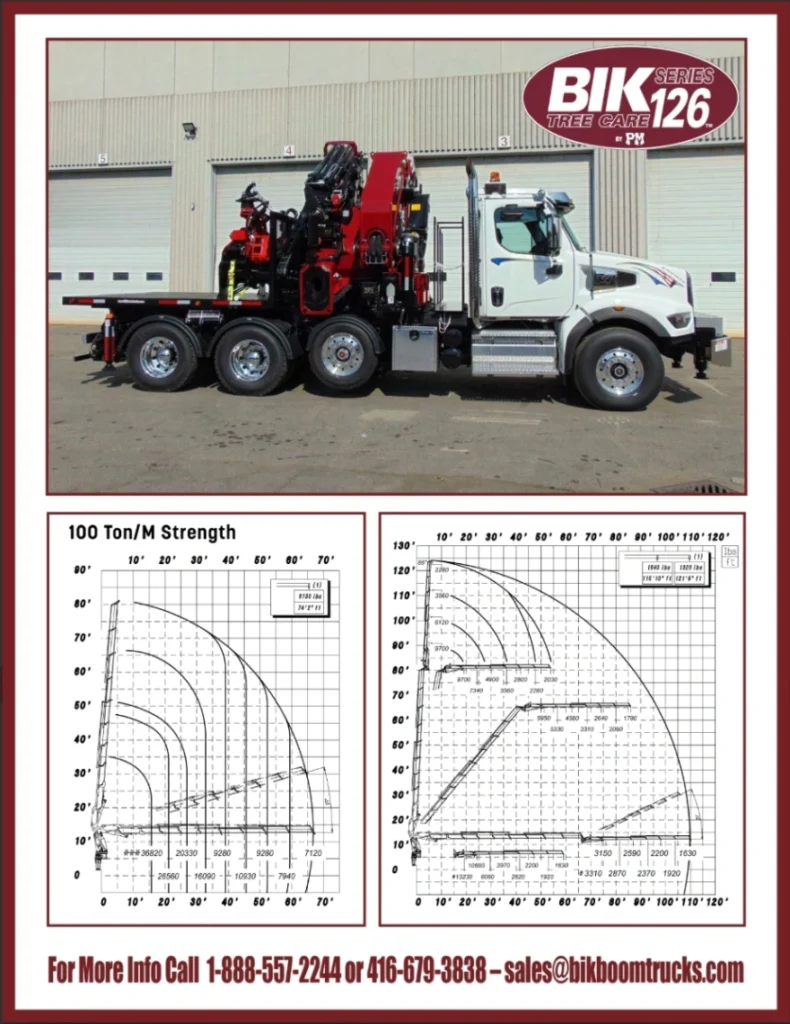

Load Chart in FT. & LBS.
Engineer Stability tested & Certified for 360 Degree / 100% capacity load chart capacity in all area’s & zones when stabilizers are fully deployed
Truck Details
New – Western Star 49X 4-axle Day Cab Tractor : 88,000 lb GVWRCUMMINS 12X Diesel – 500 HP
Jake Brake,Automated Endurant 12 spd trans.
22,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
20,000 lb self steer lift axle ahead of t/a
46,000 LB Rears on Neway Air-Ride with 11R22.5 tires on Aluminum rims
High RBM Double Frame w/integral front frame extention (for front stabilizer)
Dual Chrome polished Exhaust on both side of cab
Chromed Grille & Bumper, single 100 gallon alum fuel tank
Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM CD radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups, Air ride cab, full differential locks, sliding 5th wheel, spot light, fog lights, exterior sun visor, truck cab whiteetc…

Options Included:

(6) pcs – PVC stab pads w/holders
Custom re-enforced manual extn for grapple
Mecanil SG-220 Graple saw

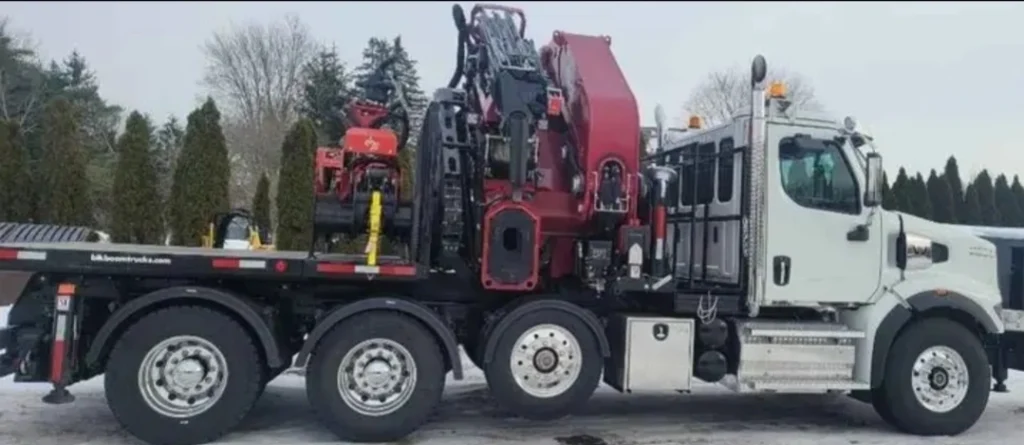

Custom 2’ deck behind boom with grapple saw holder (plus) 7.5’ long Removable Deck (over 5th wheel)
Mat rack behind cab of truck
2 to 3 day on site boom feature/function familiarization (optional for lease)
Shortest Wheel Base Truck with 100 ton/m Boom in its Class – only by BIK
