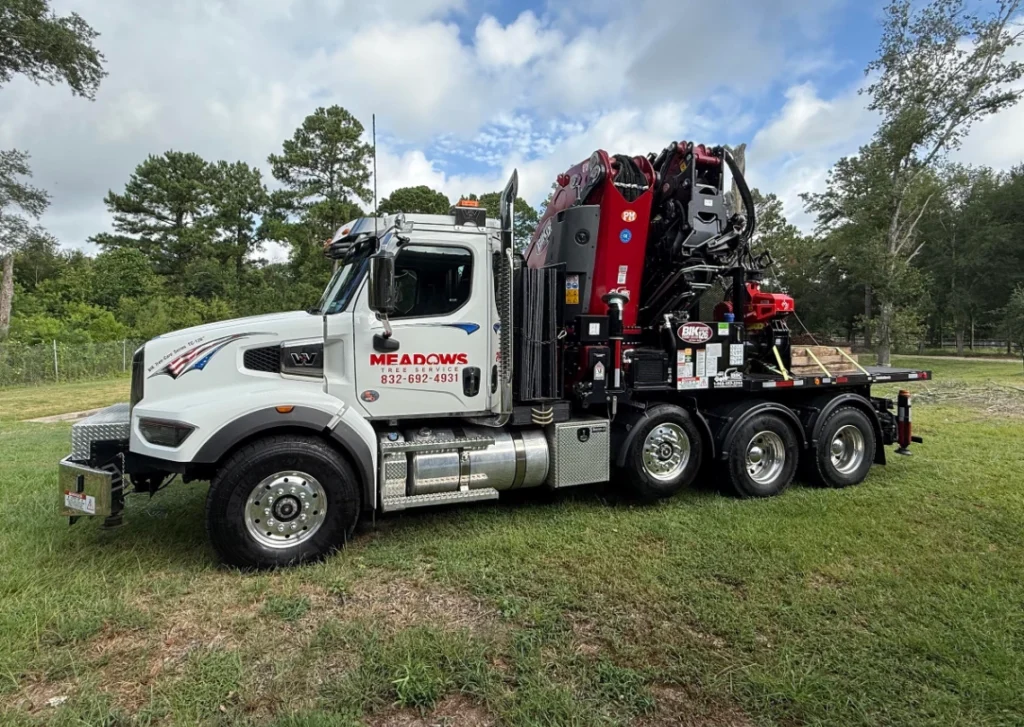

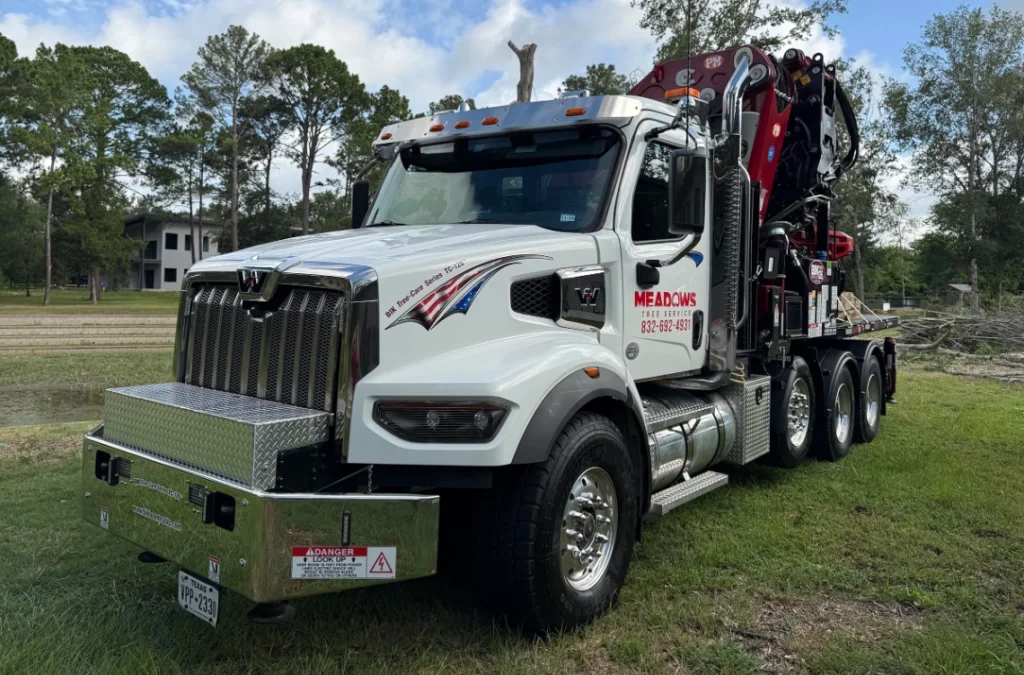

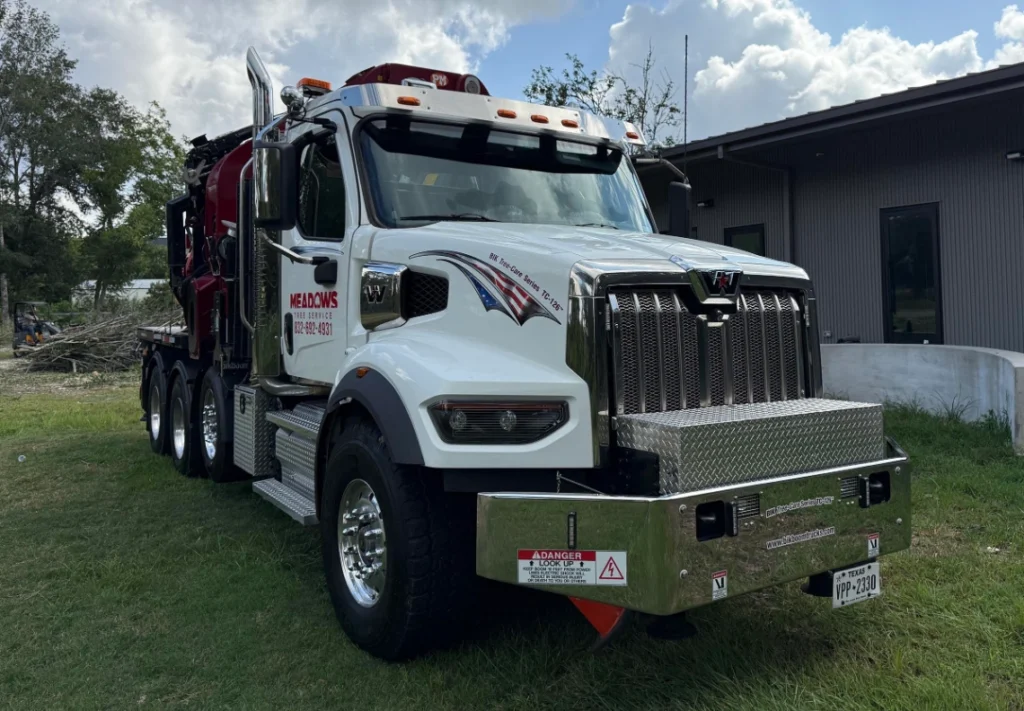

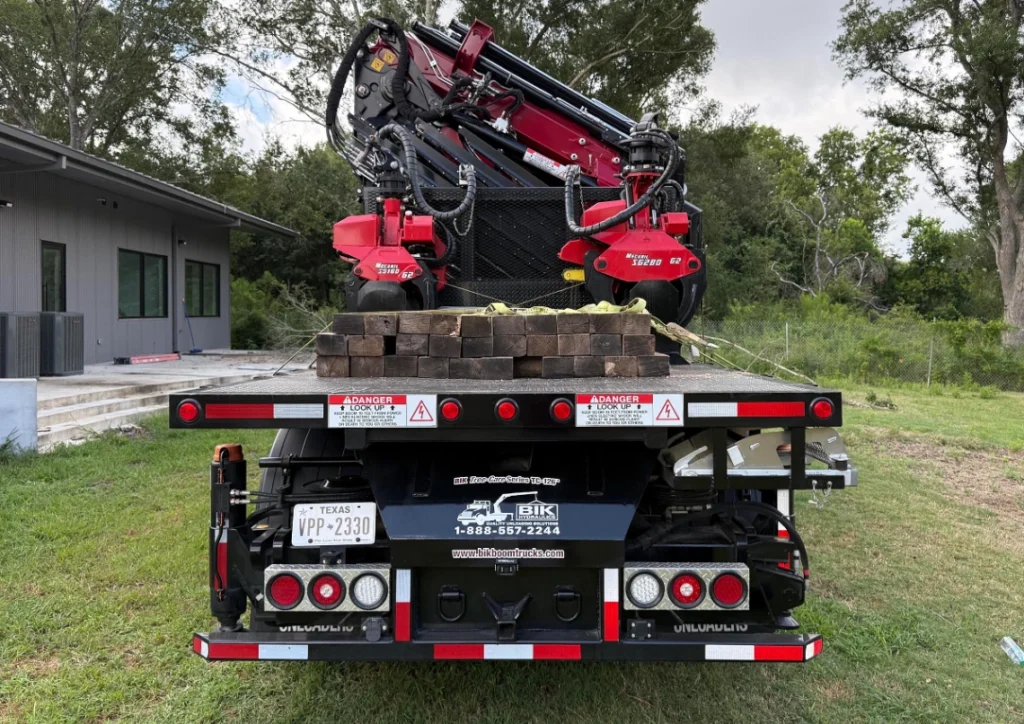

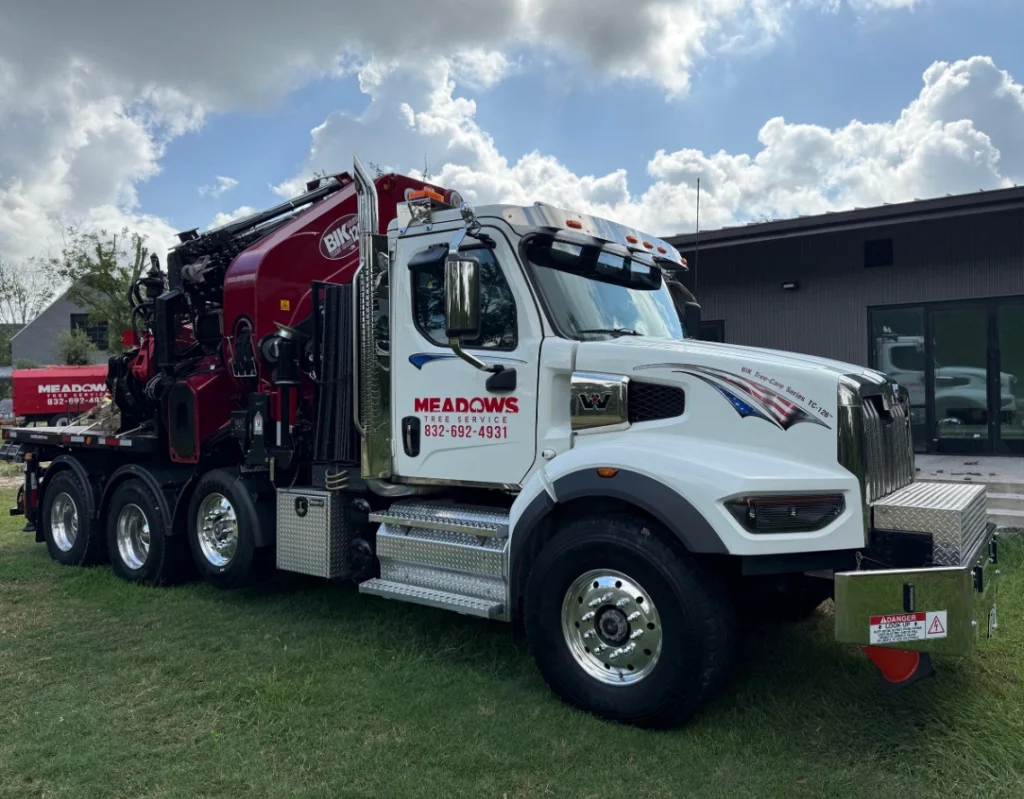

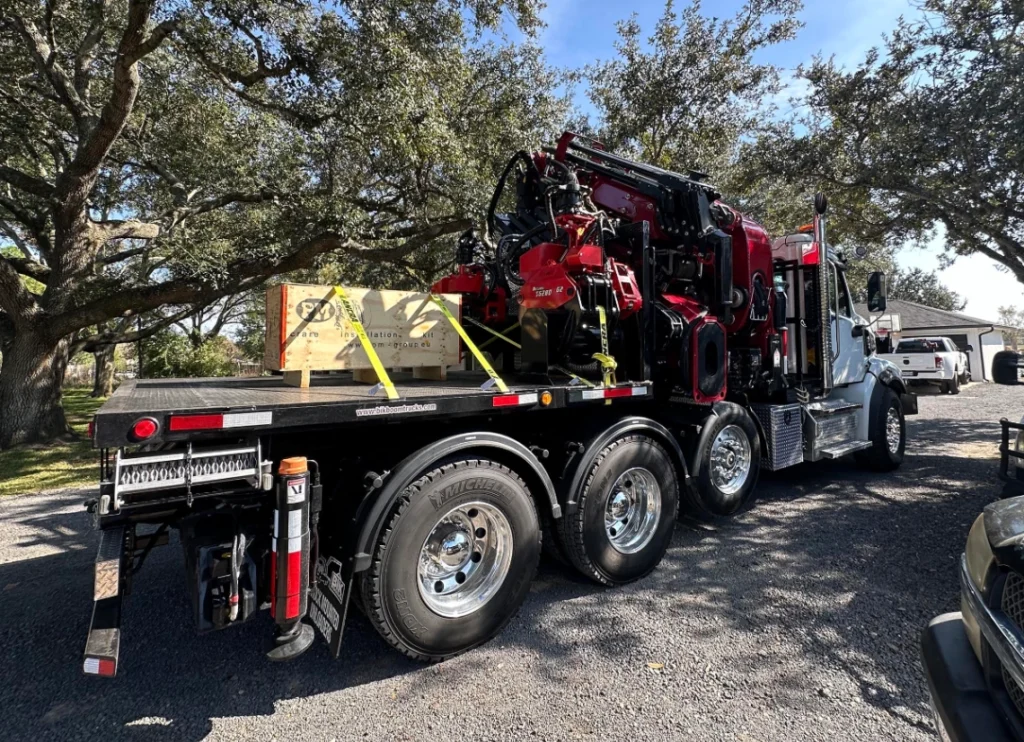

BIK TREE-CARE SERIES TC-126 ON  WESTERN STAR 49X
Rated for 2,050 lbs @ 126 ft. vertical

Description
BOOM DETAILS
BIK Tree-Care Series TC-126 –  100 ton/m  Knuckle Boom

8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
Including (1) Grapple extention in jib
Boom Capacity of  2,050 lbs @ 126’ Vertical Reach
Main Boom Horizontal Capacity:36,800 lb @  16’
20,000 lb @  23’
16,000 lb @  33’
11,000 lb @  47’
7,200 lb @ 67’
Jib Horizontal Capacity:3,200 lb @  76’
2,200 lb @ 100’
2,000 lb @ 104’
1,630 lb @  110’
w/Grapple extn to  114’
Power-Link connecting rods at First Boom, Knuckle & Jib, –15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
Continuous Rotation and Dual Planetary Gear Motors,  – 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
Remote or Side Control Pad Operated  6 Stabilizers – a) 2- Extra Wide Main outriggers at pedestal – 29’ 10” span – hyd tilting when retracted
2- Rear Aux Stabilizers behind t/a drives – 26’ Span
Dual front bumper mtd Stabilizers at front integral truck frame extension
Dual Hydraulic Oil Coolers, high pressure return & filter, – 100-gallon oil tank with AW-46 Enviro Friendly Biodegradable Hydraulic Oil
Lifting winch plumbed to jib end of jib – 4-ton single part line capacity – Ability to completely fold up boom without disconnecting winch
Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord
Boom Factory Painted Dark Red/Burgundy
Installed back of cab, with custom engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards
Load Chart in FT. & LBS.
Engineer Stability tested & Certified for 360 Degree / 100% capacity load chart capacity in all area’s & zones when stabilizers are fully deployed

TRUCK DETAILS

Western Star 49X  4-axle  Day Cab Tractor  :   88,000 lb GVWR

CUMMINS 12X Diesel – 500 HP
Jake Brake, Automated Endurant 12 spd trans.
22,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
20,000 lb self steer lift axle ahead of t/a
46,000 LB Rears on Neway Air-Ride with 11R22.5 tires on Aluminum rims
High RBM Double Frame w/integral front frame extention (for front stabilizer)
Dual Chrome polished Exhaust on both side of cab
Chromed Grille & Bumper, single 100 gallon alum fuel tank
Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM  CD radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups,  Air ride cab, full differential locks, sliding 5th wheel,  spot light, fog lights, exterior sun visor, truck cab white etc.

Options Included:

(6) pcs – PVC stab pads w/holders
Custom re-enforced manual extn for grapple
New Mecanil SG-280 Graple saw
Custom 2’ deck behind boom with grapple saw holder (plus) 7.5’ long Removable Deck (over 5th wheel)
Mat rack behind cab of truck
(additional) Mecanil SG 160 Grapple saw with spare parts kit & holder
